HDM19

Part Number Data

Article Number: 151-00134
Part Number: HDM190HIRC2
Global Product Name: HDM19
UPC: 89306174264

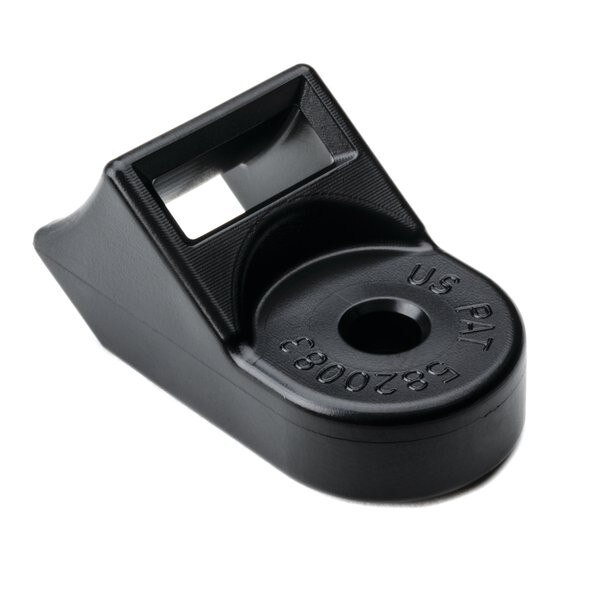

HDM19 Standard Torque Cable Tie Mount

Product Overview

The HDM19 Cable Tie Mount is a versatile solution designed for use with HellermannTyton heavy-duty T120, T250, T255, and Wide Strap Cable Ties. It features a standard torque design with a mounting hole diameter of 0.1875", capable of withstanding a maximum torque of 115.0 in lbs. Made from impact-modified, heat-stabilized, UV-resistant PA66HIRHSUV material, this mount is ideal for heavy-duty environments.

Key Features & Benefits

• Mount and tie combination for easy serviceability in the field
• Made from impact-modified, heat-stabilized, UV-resistant material for durability
• Eliminates the need for multiple-sized fix diameter clamps

Product Details

• Brand: HDM-Series
• Product Family: Harness Clips
• Material: Polyamide 6.6 high impact modified, heat, and UV stabilized (PA66HIRHSUV)
• Color: Black (BK)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Condition: For indoor and outdoor use
• Cable Tie Width Max.: 0.
