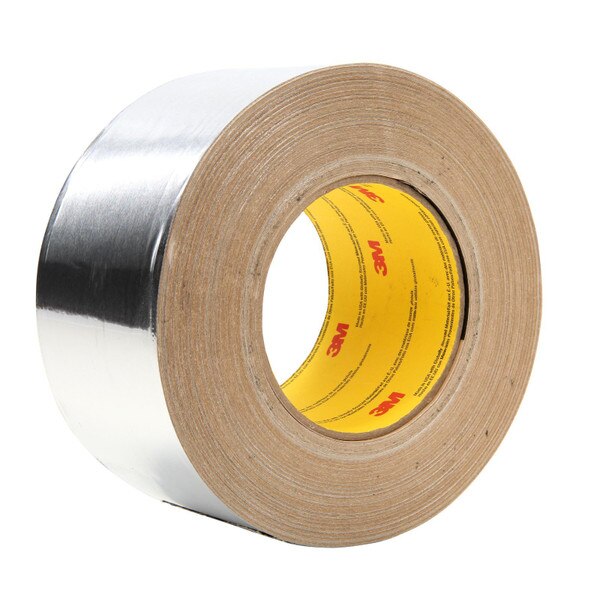

"3M Venture Tape Aluminum Foil Tape 3520CW, Silver, 63.5 mm x 45.72 m, 20 Rolls/Case"
Details
- 2.0 mil aluminum foil tape is ideal for HVAC applications
- Acrylic adhesive is specifically designed to perform in temperatures from -40°F to 250°F
- Excellent for high heat and humidity conditions
- Features easy release kraft liner
- Flexible backing conforms well to curved and irregular surfaces
- Hand tearable and easy to install on site without special tools or applications methods
Product Name: "3M™ Venture Tape™ Aluminum Foil Tape 3520CW, Silver, 63.5 mm x 45.72 m, 20 Rolls/Case"
Product Description: 3M™ Venture Tape™ Aluminum Foil Tape 3520CW is a conformable, 3.7 mil tape that is suitable for masking and sealing in general-purpose heat shielding and light-reflecting applications. Coated with cold-weather acrylic adhesive, this durable tape performs well in a wide range of environmental conditions, and offers reliable performance in temperatures ranging from -40 to 250 °F (-40 to 121 °). It is backed by foil that allows it to easily conform to irregular surfaces and on fibrous and sheet metal ductwork. This pressure-sensitive tape is hand tearable and adheres quickly without special application methods or additional tools. It maintains its form without lifting or curling, even after an extended period of time. This tape meets the UL723 flame/smoke rating, as well as the CAN/ULC S102 classification flame/smoke rating. For optimal performance in cold environments, 3M™ Venture Tape™ Aluminum Foil Tape 3520CW provides a durable bond in various masking and sealing operations.
Aluminum Foil Tape Ideal for HVAC Applications
Designed for performance even in very cold temperatures, 3M™ Venture Tape™ Aluminum Foil Tape 3520CW is a 2.0 mil aluminum foil tape that excels in demanding applications. Its foil backing and cold-weather pressure sensitive acrylic adhesive perform in temperatures from -40 to 250°F/-40 to 121°C. The aluminum foil backing conforms well around corners and to irregular surfaces. This tape provides an excellent vapor seal in various duct sealing applications. It is hand tearable and installs easily, eliminating the need for additional tools or application methods.
3M™ Venture Tape™ Aluminum Foil Tape 3520CW is UL723 Classified (10/10 Flame Smoke Rating).
Recommended Applications
- Vapor seals for fibrous and sheet metal ducts
- Heavier general purpose construction applications
Excellent Cold Weather Performance
3M™ Venture Tape™ Aluminum Foil Tape 3520CW is coated with a special cold weather, pressure sensitive acrylic adhesive system that performs exceptionally well in cold weather conditions, yet still excels at normal and elevated temperatures. It adheres immediately on contact to a variety of materials, including fibrous and sheet metal ducts. Once bonded, this tape features good aging properties that resist lifting and curling over time.
3M™ Metal Foil Tapes
Aluminum is just one of the metal-backed tapes available from 3M. Our foil tapes resist failure from common sources of degradation including moisture, ultraviolet rays and many chemicals, and are commonly used for reflecting, wrapping, masking, sealing, and more in applications from air ducts to washing machines. As with all 3M products, our 3M™ Venture Tape™ Aluminum Foil Tape 3520CW is supported by exclusive 3M technical expertise and application advice. 3M Aluminum foil tapes are suitable for demanding applications in construction, aerospace, automotive, appliance, maintenance, repair and operations and many more segments. They are also thermally conductive for heating/cooling efficiency.
Bringing Better Ideas to the Surface through Science
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100166385
- Legacy Stock Number: 70007515367
- 3M Catalog Number: 3520CW
- Sales UOM: Roll
- Sales UPC: 00638060139929 (638060139929)
- Smallest Saleable Unit UPC: 50638060139924 (638060139924)
- Shipper UPC: 50638060139924 (638060139924)
- Typical Lead Time: 2 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Aluminum Foil Tape Ideal for HVAC Applications
Designed for performance even in very cold temperatures, 3M™ Venture Tape™ Aluminum Foil Tape 3520CW is a 2.0 mil aluminum foil tape that excels in demanding applications. Its foil backing and cold-weather pressure sensitive acrylic adhesive perform in temperatures from -40 to 250°F/-40 to 121°C. The aluminum foil backing conforms well around corners and to irregular surfaces. This tape provides an excellent vapor seal in various duct sealing applications. It is hand tearable and installs easily, eliminating the need for additional tools or application methods.
3M™ Venture Tape™ Aluminum Foil Tape 3520CW is UL723 Classified (10/10 Flame Smoke Rating).
Recommended Applications
- Vapor seals for fibrous and sheet metal ducts
- Heavier general purpose construction applications
Excellent Cold Weather Performance
3M™ Venture Tape™ Aluminum Foil Tape 3520CW is coated with a special cold weather, pressure sensitive acrylic adhesive system that performs exceptionally well in cold weather conditions, yet still excels at normal and elevated temperatures. It adheres immediately on contact to a variety of materials, including fibrous and sheet metal ducts. Once bonded, this tape features good aging properties that resist lifting and curling over time.
3M™ Metal Foil Tapes
Aluminum is just one of the metal-backed tapes available from 3M. Our foil tapes resist failure from common sources of degradation including moisture, ultraviolet rays and many chemicals, and are commonly used for reflecting, wrapping, masking, sealing, and more in applications from air ducts to washing machines. As with all 3M products, our 3M™ Venture Tape™ Aluminum Foil Tape 3520CW is supported by exclusive 3M technical expertise and application advice. 3M Aluminum foil tapes are suitable for demanding applications in construction, aerospace, automotive, appliance, maintenance, repair and operations and many more segments. They are also thermally conductive for heating/cooling efficiency.
Bringing Better Ideas to the Surface through Science
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
