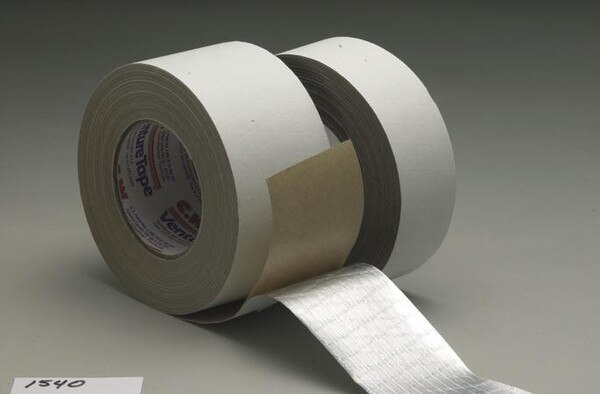

3M Venture Tape ASJ Facing Tape 1540CW, White, 123.75 mm x 45.7 m, 8 Rolls/Case

Details

• Cold weather acrylic adhesive is specifically designed to perform in cold weather conditions
• Easy to install on site without special tools or application methods
• Flexible backing conforms well to curved or irregular surfaces
• High puncture and tear resistance ensure long life and durability in a variety of applications and environments
• Mold inhibitor helps maintain adhesive strength and effectiveness
• White kraft, scrim and foil laminate backing is ideal as a vapor seal on ductboard and pipe insulation

Product Name: 3M™ Venture Tape™ ASJ Facing Tape 1540CW, White, 123.75 mm x 45.7 m, 8 Rolls/Case

Product Description: 3M™ Venture Tape™ ASJ Facing Tape 1540CW is specifically designed for cold weather and high humidity application. Coated with a proprietary, pressure-sensitive solvent acrylic adhesive with a kraft, scrim and foil laminate backing, this tape is easy to apply. Ideal for use as a closure seal on all service jacket (ASJ) faced duct piping systems or as a vapor seal on ASJ-faced duct board and pipe insulation. It is highly durable, high-puncture and tear-resistant, and helps inhibits mold. Plus, it provides solid holding power for extended periods while resisting lifting and curling, and applies easily to curved and irregular surfaces. Tape is UL723 Classified (15/0 Flame/Smoke Rating), and meets ASTM1136, Type I, II, III and IV. Venture into a stronger hold and a simple application with 3M™ Venture Tape™ ASJ Facing Tape 1540CW.

Flexible Backing Conforms to Duct Piping Systems
3M™ Venture Tape™ ASJ Facing Tape 1540CW is a 10.8 mil, tri-directional reinforced tape that excels in demanding temperature and humidity applications. It is comprised of a kraft/scrim/foil laminated backing coated with a cold weather acrylic adhesive. The backing is flexible and conforms to irregular surfaces and curves. With excellent resistance to weathering, mold, UV and environmental conditions, this tape performs extremely well in extremely cold and hot temperature applications. Mold inhibiting agents help prevent the build-up of mold in the adhesive caused by humid and damp conditions.

3M™ Venture Tape™ ASJ Facing Tape 1540CW is UL 723 Classified (5/0 Flame/Smoke Rating). This facing meets ASTM1136, Type I, II, III and IV.

Recommended Applications

• Closure system on all service jacket (ASJ) faced duct piping systems
• Vapor seal on ASJ faced ductboard and pipe insulation

Cold Weather Performance
3M™ Venture Tape™ ASJ Facing Tape 1540CW is coated with a proprietary, pressure sensitive solvent acrylic adhesive specifically designed for cold weather applications, though this adhesive performs well at normal and high temperatures as well. With a service temperature ranging from -40°F/-40°C to 240°F/116°C, this tape can be applied in a variety of environmental conditions. This adhesive features a quick stick at normal temperatures and excellent low temperature performance. Once bonded, it will provide good holding power for extended periods with good aging properties that resist lifting and curling.

Efficient Long-Term Installation
3M™ Venture Tape™ ASJ Facing Tape 1540CW applies easily to various types of thermal insulation and is easily installed without special tools or application methods. The ASJ facing is conformable for consistent application even when applied to irregular surfaces or around curves. It is also tri-directionally reinforced, helping ensure that the material stays in place even when subjected to out-of-plane shear loads.

The Science of Better Adhesion from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our industrial tapes and adhesives like 3M™ Venture Tape™ ASJ Facing Tape 1540CW to help businesses like yours operate faster, better and more efficiently.

Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100087495
- Legacy Stock Number: 70008906987
- 3M Catalog Number: 1540CW
- Sales UOM: Roll
- Sales UPC: 00051128956571 (051128956571)
- Smallest Saleable Unit UPC: 50051128956576 (051128956576)
- Shipper UPC: 50051128956576 (051128956576)
- Typical Lead Time: 2 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:

Flexible Backing Conforms to Duct Piping Systems
3M™ Venture Tape™ ASJ Facing Tape 1540CW is a 10.8 mil, tri-directional reinforced tape that excels in demanding temperature and humidity applications. It is comprised of a kraft/scrim/foil laminated backing coated with a cold weather acrylic adhesive. The backing is flexible and conforms to irregular surfaces and curves. With excellent resistance to weathering, mold, UV and environmental conditions, this tape performs extremely well in extremely cold and hot temperature applications. Mold inhibiting agents help prevent the build-up of mold in the adhesive caused by humid and damp conditions.

3M™ Venture Tape™ ASJ Facing Tape 1540CW is UL 723 Classified (5/0 Flame/Smoke Rating). This facing meets ASTM1136, Type I, II, III and IV.

Recommended Applications

• Closure system on all service jacket (ASJ) faced duct piping systems
• Vapor seal on ASJ faced ductboard and pipe insulation

Cold Weather Performance
3M™ Venture Tape™ ASJ Facing Tape 1540CW is coated with a proprietary, pressure sensitive solvent acrylic adhesive specifically designed for cold weather applications, though this adhesive performs well at normal and high temperatures as well. With a service temperature ranging from -40°F/-40°C to 240°F/116°C, this tape can be applied in a variety of environmental conditions. This adhesive features a quick stick at normal temperatures and excellent low temperature performance. Once bonded, it will provide good holding power for extended periods with good aging properties that resist lifting and curling.

Efficient Long-Term Installation
3M™ Venture Tape™ ASJ Facing Tape 1540CW applies easily to various types of thermal insulation and is easily installed without special tools or application methods. The ASJ facing is conformable for consistent application even when applied to irregular surfaces or around curves. It is also tri-directionally reinforced, helping ensure that the material stays in place even when subjected to out-of-plane shear loads.

The Science of Better Adhesion from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our industrial tapes and adhesives like 3M™ Venture Tape™ ASJ Facing Tape 1540CW to help businesses like yours operate faster, better and more efficiently.

Important Links:

Tech Data Sheet
Flyer
- EU REACH: This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2021. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2023. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2024. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective July 2021. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2023. Refer to SDS or comment for identification of SVHC(s).
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
