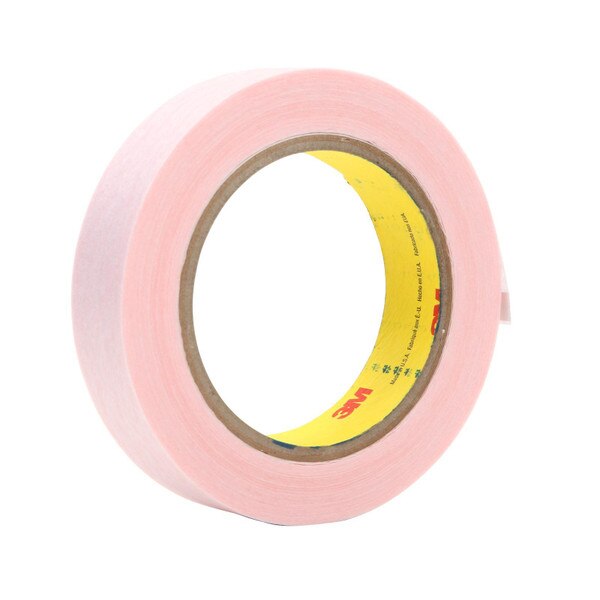

3M Venting Tape 3294, Pink, 1 in x 36 yd, 5 mil, 36 Roll/Case
Details
- Adhesive is strip-coated so uncoated areas have higher permeability to help minimize foaming voids
- Commonly used for outgas venting in appliance manufacturing
- Features a unique non-woven conformable backing that has high air/gas permeability
- Meets most outgassing requirements for foam-in-place insulation processes
Product Name: 3M™ Venting Tape 3294, Pink, 1 in x 36 yd, 5 mil, 36 Roll/Case
Product Description: 3M™ Venting Tape 3294 is a pink non-woven, synthetic backing with a strip-coated low-tack pressure sensitive acrylic adhesive for use in various venting applications requiring high outgassing rates.
Conformable, Non-Woven Backing Offers High Air/Gas Permeability
We manufacture 3M™ Venting Tape 3294 to meet various high outgassing requirements for foam-in-place insulation processes in appliance and other industries. The acrylic adhesive is strip-coated so uncoated areas have higher permeability to help minimize foaming voids. The non-woven, synthetic backing is conformable with good burst strength for effective sealing and minimal foaming voids to help reduce clean-up.
Recommended applications:
- To allow the confinement and outgassing of foam insulation
Used in Foam-In-Place Manufacturing Process
A common challenge in refrigerator and freezer manufacturing is the venting of insulation foam gasses while keeping foam in place. Our venting tape is used to cover openings in the cabinet of refrigerators and freezers during the foam-in-place manufacturing process. It allows air and gases to escape while keeping solids (such as urethane foam) in place. The air-permeable, non-woven backing of 3M™ Venting Tape 3294 keeps foam-in-place insulation inside door and appliance cavities, while helping eliminate voids.
Bringing Better Ideas to the Surface through Science and Innovation
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100009843
- Legacy Stock Number: 70006209327
- 3M Catalog Number: 3294
- Sales UOM: Roll
- Sales UPC: 00021200266669 (021200266669)
- Smallest Saleable Unit UPC: 00021200266669 (021200266669)
- Shipper UPC: 50021200266664 (021200266664)
- Typical Lead Time: 2 Days
- Shelf Life: 547 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Conformable, Non-Woven Backing Offers High Air/Gas Permeability
We manufacture 3M™ Venting Tape 3294 to meet various high outgassing requirements for foam-in-place insulation processes in appliance and other industries. The acrylic adhesive is strip-coated so uncoated areas have higher permeability to help minimize foaming voids. The non-woven, synthetic backing is conformable with good burst strength for effective sealing and minimal foaming voids to help reduce clean-up.
Recommended applications:
- To allow the confinement and outgassing of foam insulation
Used in Foam-In-Place Manufacturing Process
A common challenge in refrigerator and freezer manufacturing is the venting of insulation foam gasses while keeping foam in place. Our venting tape is used to cover openings in the cabinet of refrigerators and freezers during the foam-in-place manufacturing process. It allows air and gases to escape while keeping solids (such as urethane foam) in place. The air-permeable, non-woven backing of 3M™ Venting Tape 3294 keeps foam-in-place insulation inside door and appliance cavities, while helping eliminate voids.
Bringing Better Ideas to the Surface through Science and Innovation
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
