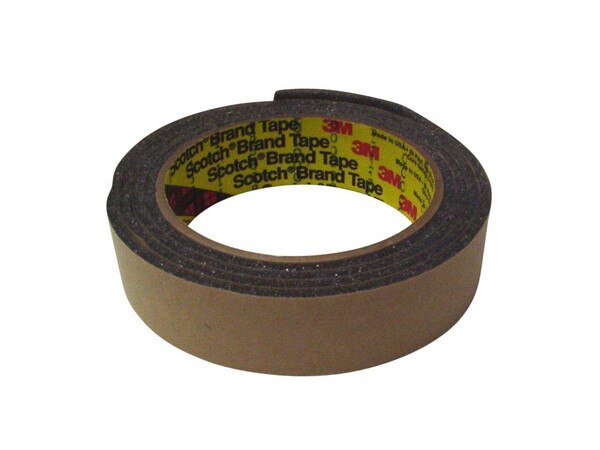

3M Urethane Foam Tape 4314, Charcoal, Gray, 1 1/2 in x 18 yd, 250 mil, 6 Roll/Case
Details
- Charcoal gray, 0.250 in. (6.4 mm) soft conformable, low-density, open-cell foam design helps seal out air, dust and light when compressed
- Dampens sounds and absorbs vibration when used in electronic applications
- Excellent cushioning characteristics and high absorbency
- Offers high initial quick-stick to multiple substrates
- Provides excellent shear strength and high temperature performance
Product Name: 3M™ Urethane Foam Tape 4314, Charcoal, Gray, 1 1/2 in x 18 yd, 250 mil, 6 Roll/Case
Product Description: 3M™ Urethane Foam Tape 4314 is a conformable, low-density, open-cell foam tape with a pressure sensitive acrylic adhesive on one side. This tape will adhere to a variety of substrates and can be used in numerous mounting applications to dampen sound and create a clean and durable product.
Seals Out Moisture, Dust and Drafts
3M™ Urethane Foam Tape 4314 is 1/4 in. thick, comprised of a soft conformable, low-density, open-cell foam with a pressure sensitive acrylic adhesive on one side. The adhesive is protected by a silicone treated paper liner. It offers excellent cushioning characteristics while providing high absorbency to seal out moisture, dust and drafts. It can perform under a wide range of temperatures. Special note: Extra care should be taken when handling to avoid damaging tape.
Recommended Applications
- Cushion and dampen sound in electronics such as printers, keyboards, computers, aircraft lights and automotive dashboards
- Register covers
- Recessed lighting
- Door, window and cabinet seals
Excellent Shear Holding Strength with 3M™ Adhesive 430
3M™ Urethane Foam Tape 4314 features 3M™ Adhesive 430. This pressure sensitive, modified acrylic adhesive provides high initial quick-stick to a variety of surfaces and substrates. It has an excellent chemical resistant and shear holding strength, even at elevated temperatures. Adhesive 430 is designed to perform at temperatures up to 180°F (82°C) in the short term and 150°F (70°C) long term.
Protect Sensitive Components
The adhesion of 3M™ Single-Coated Foam Tapes is typically satisfactory within 20 minutes and continues to build with additional time. The adhesive is protected by a thick, silicone treated paper liner and has a firm, high-density foam. This design offers an attractive and clean appearance after application.
What is Open Cell Foam?
Open cell foams are commonly used between component panels where a degree of separation is needed to dampen or prevent vibration, as a thermal insulation barrier and to protect against contamination, but where a measure of airflow is still necessary, such as with electronic components where air flow helps keeps components cool.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010334184
- Legacy Stock Number: 70006096344
- 3M Catalog Number: 4314
- Sales UOM: Roll
- Sales UPC: 00021200674723 (021200674723)
- Smallest Saleable Unit UPC: 50021200674728 (021200674728)
- Shipper UPC: 50021200674728 (021200674728)
- Typical Lead Time: 15 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Seals Out Moisture, Dust and Drafts
3M™ Urethane Foam Tape 4314 is 1/4 in. thick, comprised of a soft conformable, low-density, open-cell foam with a pressure sensitive acrylic adhesive on one side. The adhesive is protected by a silicone treated paper liner. It offers excellent cushioning characteristics while providing high absorbency to seal out moisture, dust and drafts. It can perform under a wide range of temperatures. Special note: Extra care should be taken when handling to avoid damaging tape.
Recommended Applications
- Cushion and dampen sound in electronics such as printers, keyboards, computers, aircraft lights and automotive dashboards
- Register covers
- Recessed lighting
- Door, window and cabinet seals
Excellent Shear Holding Strength with 3M™ Adhesive 430
3M™ Urethane Foam Tape 4314 features 3M™ Adhesive 430. This pressure sensitive, modified acrylic adhesive provides high initial quick-stick to a variety of surfaces and substrates. It has an excellent chemical resistant and shear holding strength, even at elevated temperatures. Adhesive 430 is designed to perform at temperatures up to 180°F (82°C) in the short term and 150°F (70°C) long term.
Protect Sensitive Components
The adhesion of 3M™ Single-Coated Foam Tapes is typically satisfactory within 20 minutes and continues to build with additional time. The adhesive is protected by a thick, silicone treated paper liner and has a firm, high-density foam. This design offers an attractive and clean appearance after application.
What is Open Cell Foam?
Open cell foams are commonly used between component panels where a degree of separation is needed to dampen or prevent vibration, as a thermal insulation barrier and to protect against contamination, but where a measure of airflow is still necessary, such as with electronic components where air flow helps keeps components cool.
Important Links:

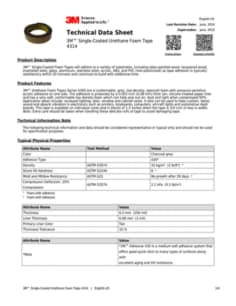

Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
