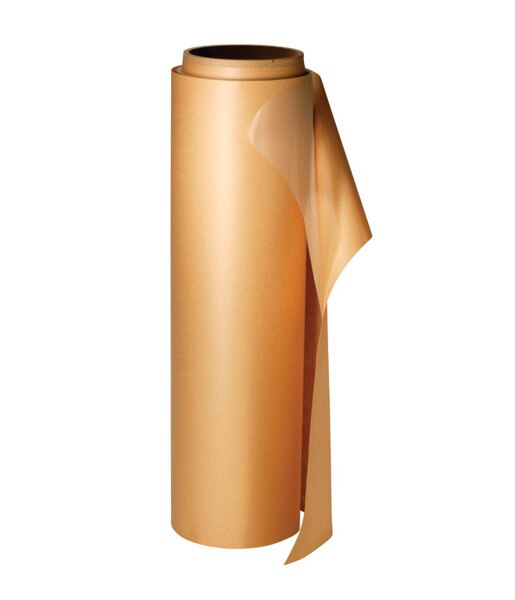

3M Thin Flexographic Mounting Tape 2205, Translucent, 18 in x 60 yd, 5 mil, 1 Roll/Case, 3 inch Core
Details
- 0.005 inch (0.13 mm) double-coated tape designed for the corrugated printing business to hold flexographic print plates to PVC carriers/saddles and PET carriers/saddles
- Adhesive on non-linered side of the tape is designed for mounting of photopolymer plates
- Clean plate removal when demounting or repositioning
- Embossed polycoated kraft (PCK) paper liner
- Excellent holding power on-press with high plate side adhesion
- Linered side of the tape has crosshatched pattern that allows air to escape from between the tape and the carrier
Product Name: 3M™ Thin Flexographic Mounting Tape 2205, Translucent, 18 in x 60 yd, 5 mil, 1 Roll/Case, 3 inch Core
Product Description: 3M™ Thin Flexographic Mounting Tape 2205 is a 5 mil, double coated film tape with differential acrylic adhesives on a polyester film carrier with a polycoated kraft paper liner. This tape is specifically designed for the corrugated printing business to hold flexographic print plates to PVC saddles/carriers.
On Easy with Reduced Air Entrapment
3M™ Thin Flexographic Mounting Tape 2205 features the 3M air release liner, which has a crosshatched pattern, unlike other mounting tapes that use a pebbled or flat release liner. The embossed crosshatched pattern imprints unique micro-channels into the easy mount adhesive that allows entrapped air to escape. Air bubbles disappear from between the tape and plate, and between the tape and sleeve or cylinder for virtually bubble-free mounting. Setup is faster with smoother surfaces for cleaner print quality and higher productivity. The adhesive maintains tight contact with reduced edge lifting.
Recommended Applications
- Mounting flexographic corrugated post print plates to PVC saddles/carriers and PET saddles/carriers
Keep the Presses Running and your Customers Coming Back
For decades, 3M products have been at work in printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done. From paper web splicing to plate mounting and packaging the finished job, you can rely on 3M for solutions and service throughout an operation.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010300501
- Legacy Stock Number: 70006776234
- 3M Catalog Number: 2205
- Sales UOM: Roll
- Sales UPC: 00076308982843 (076308982843)
- Smallest Saleable Unit UPC: 00076308982843 (076308982843)
- Shipper UPC: 00076308982843 (076308982843)
- Typical Lead Time: 5 Days
- Shelf Life: 365 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
On Easy with Reduced Air Entrapment
3M™ Thin Flexographic Mounting Tape 2205 features the 3M air release liner, which has a crosshatched pattern, unlike other mounting tapes that use a pebbled or flat release liner. The embossed crosshatched pattern imprints unique micro-channels into the easy mount adhesive that allows entrapped air to escape. Air bubbles disappear from between the tape and plate, and between the tape and sleeve or cylinder for virtually bubble-free mounting. Setup is faster with smoother surfaces for cleaner print quality and higher productivity. The adhesive maintains tight contact with reduced edge lifting.
Recommended Applications
- Mounting flexographic corrugated post print plates to PVC saddles/carriers and PET saddles/carriers
Keep the Presses Running and your Customers Coming Back
For decades, 3M products have been at work in printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done. From paper web splicing to plate mounting and packaging the finished job, you can rely on 3M for solutions and service throughout an operation.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
