3M Scotchcast Electrical Resin 241 (14 lb), 1 Kits/Case
Details
Details

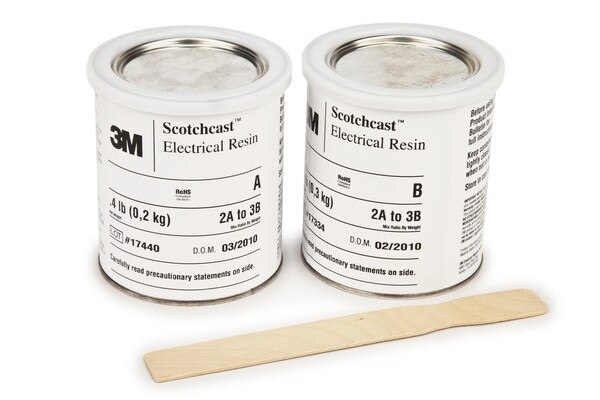

Product Name: 3M™ Scotchcast™ Electrical Resin 241 (14 lb), 1 Kits/Case
Product Description: 3M™ Scotchcast™ Resin 241 is a 2 part, oven curing, filled, epoxy based, liquid resin. The semi flexible resin has excellent adhesion, terminal shock, impact resistance and stable electrical and physical properties. This resin is frequently used for motor encapsulation, transformer potting and insulating other electrical as well as electronic components.
3M™ Scotchcast™ Electrical Resin 241 has built in flexibility, stable electrical as well as physical properties. This filled resin system is specially formulated to use in applications where higher thermal conductivity and greater mechanical strength are required. MIL I 16923E Certified and RoHS 2011/65/EU Compliant.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000133716
- Legacy Stock Number: 80700241021
- 3M Catalog Number: 241-1GAL-14LBS/KIT
- Sales UOM: Kit
- Sales UPC: 00054007345114 (054007345114)
- Smallest Saleable Unit UPC: 50054007345119 (054007345119)
- Shipper UPC: 50054007345119 (054007345119)
- Typical Lead Time: 2 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT RESTRICTED, AS PER 49 CFR 171.4, MARINE POLLUTANT EXCEPTION
- International Air Transport Association: NOT RESTRICTED, AS PER SPECIAL PROVISION A197, ENVIRONMENTALLY HAZARDOUS SUBSTANCE EXCEPTION
Additional Information: 3M™ Scotchcast™ Electrical Resin 241 has built in flexibility, stable electrical as well as physical properties. This filled resin system is specially formulated to use in applications where higher thermal conductivity and greater mechanical strength are required. MIL I 16923E Certified and RoHS 2011/65/EU Compliant.
Important Links:
Tech Data Sheet
- 65 Shore D hardness
- Elongates 45% longer than its original size for easy insulation or wrapping
- For motor encapsulation, transformer potting and insulating other electrical and electronic components
- Has 22-minute gel time at 250 °F (121 °C)
- Suitable where higher thermal conductivity and greater mechanical strength are required
- Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
