3M Scotchcast Electrical Insulating and Sealing Compound 2104E, 10.6 oz, 10 /Case
Details
Details

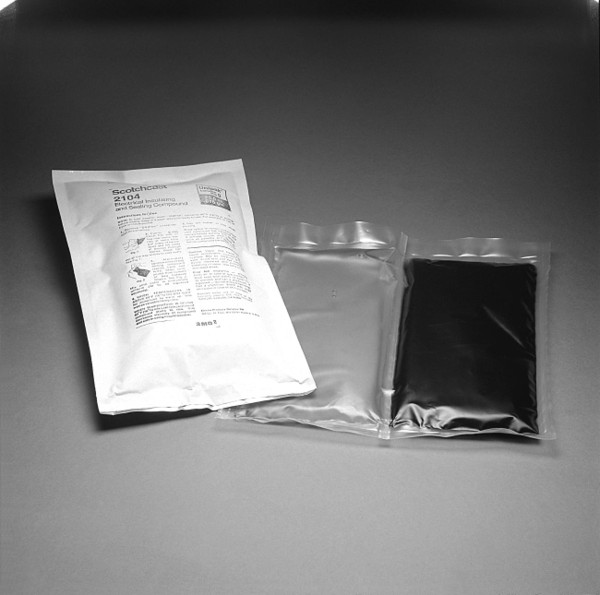

Product Name: 3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104E, 10.6 oz, 10 /Case
Product Description: 3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104 is a 2 part, liquid type, semi flexible resin useful for providing permanent splice protection. This polyurethane resin has a good wetting and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, potting, sealing, insulating and more.
3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104 has a low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible property and good adhesion property after curing. It is ideal for electrical applications that need good handling and performance characteristics. High dielectric strength offers a very good electrical insulating property to the resin. The resin allows you to insulate conductors of multi core splices operating at 1 kV or less. It is used in 72 N, 85 Series kits. ASTM Approved and RoHS 2011/65/EU Compliant?.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100164191
- Legacy Stock Number: 80610073605
- 3M Catalog Number: 2104E
- Sales UOM: Each
- Sales UPC: 00054007311874 (054007311874)
- Smallest Saleable Unit UPC: 00054007311874 (054007311874)
- Shipper UPC: 50054007311879 (054007311879)
- Typical Lead Time: 10 Days
- Shelf Life: 24 Months
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT RESTRICTED, AS PER 49 CFR 171.4, MARINE POLLUTANT EXCEPTION
- International Air Transport Association: NOT RESTRICTED, AS PER SPECIAL PROVISION A197, ENVIRONMENTALLY HAZARDOUS SUBSTANCE EXCEPTION
Additional Information: 3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104 has a low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible property and good adhesion property after curing. It is ideal for electrical applications that need good handling and performance characteristics. High dielectric strength offers a very good electrical insulating property to the resin. The resin allows you to insulate conductors of multi core splices operating at 1 kV or less. It is used in 72 N, 85 Series kits. ASTM Approved and RoHS 2011/65/EU Compliant?.
Important Links:
Tech Data Sheet
- 70 Shore A hardness
- Elongates 98% longer than its original size for easy insulation or wrapping
- Has 18-minute gel time at 73 °F (23 °C)
- Useful for replacing or repairing the jacket on both single- and multi-core power cables
- Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
- Withstands a voltage rating of 1 kV or less
