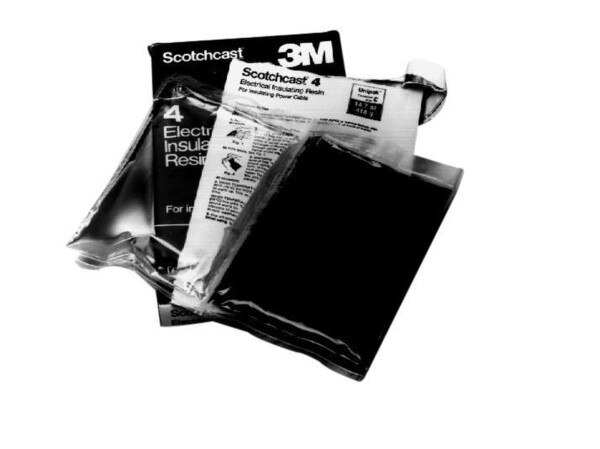

3M Scotchcast Electrical Insulating Resin 4N-B, (7.4 oz), 10 /Case
Details
Details
Product Name: 3M™ Scotchcast™ Electrical Insulating Resin 4N-B, (7.4 oz), 10 /Case
Product Description: 3M™ Scotchcast™ Electrical Insulating Resin 4N, with nozzel and guard bag, is a 2 part, insulating and encapsulating, epoxy based, liquid resin that generates its own heat to cure. Compatible with solid/synthetic cable insulations and jackets, this resin makes an excellent insulator and sealer for cable splicing.
3M™ Scotchcast™ Electrical Resin 4N A is a multi purpose moisture sealing resin that remains stable, even at elevated temperatures. The resin bonds to itself and to nearly all modern cable jackets. It allows you to splice solid dielectric and oil filled cables up to 8 kV and to jacket high voltage splices. This resin is used in 82 H, 82 B1, 85 14CP and 90 B1 Series splice kits. ASTM Approved and RoHS 2011/65/EU Compliant?.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100127061
- Legacy Stock Number: 80-6109-8241-7;80611616782
- 3M Catalog Number: 4N-B
- Sales UOM: Pack
- Sales UPC: 00051128613481 (051128613481)
- Smallest Saleable Unit UPC: 00051128613481 (051128613481)
- Shipper UPC: 50051128613486 (051128613486)
- Typical Lead Time: 2 Days
- Shelf Life: 36 Months
- United States Department Of Transportation Ground (US DOT, 49 CFR): LIMITED QUANTITY
- International Air Transport Association: UN3267, CORROSIVE LIQUID, BASIC, ORGANIC, N.O.S., (N-AMINOETHYLPIPERAZINE), 8, III
Additional Information: 3M™ Scotchcast™ Electrical Resin 4N A is a multi purpose moisture sealing resin that remains stable, even at elevated temperatures. The resin bonds to itself and to nearly all modern cable jackets. It allows you to splice solid dielectric and oil filled cables up to 8 kV and to jacket high voltage splices. This resin is used in 82 H, 82 B1, 85 14CP and 90 B1 Series splice kits. ASTM Approved and RoHS 2011/65/EU Compliant?.
Important Links:
Tech Data Sheet
- 80 Shore D hardness
- Elongates 4% longer than its original size for easy insulation or wrapping
- Has 16-minute gel time at 73 °F (23 °C)
- Useful for splicing solid dielectric and oil-filled cables up to 8 kV
- Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
- Withstands a voltage rating of 8 kV or less (for splicing solid dielectric and oil-filled cables)
