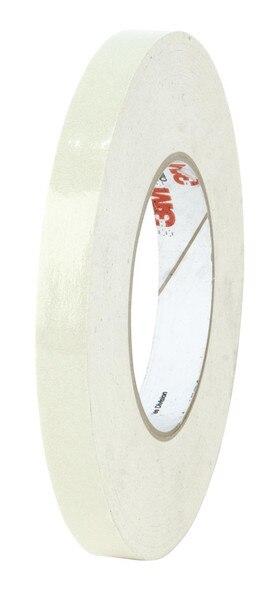

3M Polyester Film/Mat Composite Film Tape 55, 23-1/2 in x 72 yd, Log Roll, 1 Roll/Case
Details
Details
Product Name: 3M™ Polyester Film/Mat Composite Film Tape 55, 23-1/2 in x 72 yd, Log Roll, 1 Roll/Case
Product Description: 3M™ 55 Composite Film Electrical Tape is polyester web reinforced polyester film coated with a rubber pressure sensitive adhesive. Edge tear and puncture resistant with excellent electrical properties, it is tough and conformable. It is .0055 inch thick and is best used for coil cover, lead pad and core, layer and crossover insulation.
This tape is especially well suited for use as a coil cover. For end turns, lead pad and core layer and crossover insulation
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000006005
- Legacy Stock Number: 80610533335
- 3M Catalog Number: 55 LOG 23.5"X72YD
- Sales UOM: Roll
- Sales UPC: 00054007697800 (054007697800)
- Smallest Saleable Unit UPC: 50054007697805 (054007697805)
- Shipper UPC: 50054007697805 (054007697805)
- Typical Lead Time: 2 Days
- Shelf Life: 1825 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: This tape is especially well suited for use as a coil cover. For end turns, lead pad and core layer and crossover insulation
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
- Class B (130°C)
- High edge-tear resistance
- High puncture and abrasion resistance
