3M Polycarbonate Ultra Precision Carrier 3000UB, Prototype, 8 mm x 80 m
Details
Details
Product Name: 3M™ Polycarbonate Ultra Precision Carrier 3000UB, Prototype, 8 mm x 80 m

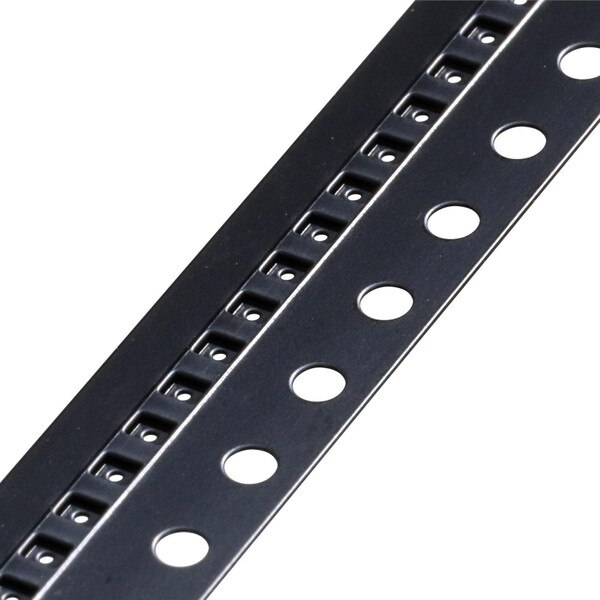

Product Description: 3M™ Polycarbonate Ultra Precision Carrier 3000UB is a black, splice free, polycarbonate carrier with typical surface resistivity of E5 ohms/sq.
3M carrier 3000UB is an ultra precision carrier designed to meet the demanding needs of smaller and thinner static sensitive components that require tighter pocket dimensional tolerance and cleanroom compatible requirements.
Technical Specifications:
- Country of Origin: Singapore
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100208850
- Legacy Stock Number: XA006806419
- Sales UOM: Roll
- Sales UPC: 00051111906231 (051111906231)
- Smallest Saleable Unit UPC: 58887862351504 (887862351504)
- Shipper UPC: 58887862351504 (887862351504)
- Typical Lead Time: 34 Days
- Shelf Life: 1825 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: 3M carrier 3000UB is an ultra precision carrier designed to meet the demanding needs of smaller and thinner static sensitive components that require tighter pocket dimensional tolerance and cleanroom compatible requirements.
Important Links:
- 3M carrier 3000UB is cleaned and packaged in a Class 10,000 cleanroom environment
- Available in width of 8 mm in planetary or level winding format
- Compatible with 3M™ Pressure Sensitive Adhesive Cover Tapes, 3M™ Universal Cover Tape and 3M™ Heat Activated Adhesive Cover Tapes with good sealing and peeling performance
- Good impact strength and resistance for improved component protection
- Lower shrinkage percentage than such materials as polyester providing stable pocket dimension after formation
- Recommended for small static-sensitive components requiring tight precision and cleanroom applications, such as packages of 1 mm x 1 mm or below
- Same materials and physical characteristics as 3M™ Polycarbonate Carrier 3000
- black, splice free, polycarbonate carrier with a typical surface resistivity at E5 ohms/sq., and precisely formed pockets to ensure component fit per ANSI/EIA guidelines
- Tight pocket dimensional tolerance at +/- 0.03 mm with a small pocket hole of 0.12 mm - 0.2 mm featuring small draft angle and flat pocket bottom to contain component securely in pocket with less risk of tilting, flipping and rotating
