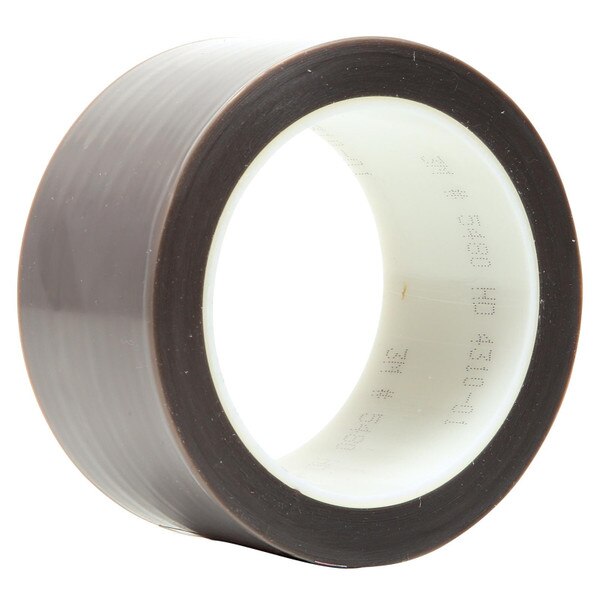

3M PTFE Film Tape 5480, Gray, 2 in x 36 yd, 3.7 mil, 6 Rolls/Case, Mini Case

Details

• Excellent chemical resistance enables tape to withstand challenging applications
• Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
• Silicone adhesive provides clean removal from a variety of surfaces
• Skived 3M™ PTFE Film Tapes are more conformable than typical extruded PTFE film tapes
• Wide temperature range for performance on heated machinery and equipment

Product Name: 3M™ PTFE Film Tape 5480, Gray, 2 in x 36 yd, 3.7 mil, 6 Rolls/Case, Mini Case

Product Description: 3M™ PTFE Skived Film Tape 5480 uses a skived, polytetrafluoroethylene (PTFE), conformable film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of web materials in many types of roll-wrap applications.

An Exceptionally Slick Surface
The skived film backing on 3M™ PTFE Skived Film Tape 5480 provides good conformability when unwound from the roll compared to typical extruded PTFE film tapes. We developed this tape as a quick and easy solution to reduce friction between moving surfaces. It functions as an anti-stick or easy-release medium between surfaces where pressure, temperature changes and other factors may create a measure of adhesion. Applying 3M™ PTFE Skived Film Tape 5480 can help improve surface movement, eliminate squeaks and rattles, and reduce machine noise. PTFE is chemical resistant and can be used as a temporary chemical barrier. The tape has a wide temperature use range, from -65°F / -54°C to 500°F / 260°C, making it suitable for a variety of applications.

Recommended Applications

• Roll-wrap for web processing, belts and plates where sticky materials and inks may occur
• High temperature wire bundling and harnessing
• Squeak and noise reduction
• Shielding and protecting against chemicals
• Mold release for composite bonding

What is PTFE?
Polytetrafluoroethylene (PTFE) is a synthetic material used in a variety of industries and applications to reduce the coefficient of friction. Because of its non-stick properties and high heat resistance, PTFE is used as a non-stick coating for frying pans and other cookware. It makes an excellent insulating material for electrical applications because of its non-conductivity. PTFE is non-reactive to numerous chemicals, due to the chemical resistance of fluoropolymer bonds; making it effective in containers and pipework for reactive and corrosive substances.

PTFE reduces friction, wear and energy efficiency of machinery. Because of its low friction, PTFE is used in industrial applications where sliding action of parts is required, such as with bearings, gears, slide plates, etc. In these applications, it delivers significantly better performance than nylon or acetal. 3M has taken this versatile compound through an extrusion process to create a thin film, then paired the film with 3MÂ’s unique pressure sensitive adhesives to make these PTFE tapes. Innovative, high performance 3M PTFE tapes are reliable, durable and reduce friction.

Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010374403
- Legacy Stock Number: 70006384229
- 3M Catalog Number: 5480
- Sales UOM: Roll
- Sales UPC: 00051138949624 (051138949624)
- Smallest Saleable Unit UPC: 50051138949629 (051138949629)
- Shipper UPC: 50051138949629 (051138949629)
- Typical Lead Time: 31 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:

An Exceptionally Slick Surface
The skived film backing on 3M™ PTFE Skived Film Tape 5480 provides good conformability when unwound from the roll compared to typical extruded PTFE film tapes. We developed this tape as a quick and easy solution to reduce friction between moving surfaces. It functions as an anti-stick or easy-release medium between surfaces where pressure, temperature changes and other factors may create a measure of adhesion. Applying 3M™ PTFE Skived Film Tape 5480 can help improve surface movement, eliminate squeaks and rattles, and reduce machine noise. PTFE is chemical resistant and can be used as a temporary chemical barrier. The tape has a wide temperature use range, from -65°F / -54°C to 500°F / 260°C, making it suitable for a variety of applications.

Recommended Applications

• Roll-wrap for web processing, belts and plates where sticky materials and inks may occur
• High temperature wire bundling and harnessing
• Squeak and noise reduction
• Shielding and protecting against chemicals
• Mold release for composite bonding

What is PTFE?
Polytetrafluoroethylene (PTFE) is a synthetic material used in a variety of industries and applications to reduce the coefficient of friction. Because of its non-stick properties and high heat resistance, PTFE is used as a non-stick coating for frying pans and other cookware. It makes an excellent insulating material for electrical applications because of its non-conductivity. PTFE is non-reactive to numerous chemicals, due to the chemical resistance of fluoropolymer bonds; making it effective in containers and pipework for reactive and corrosive substances.

PTFE reduces friction, wear and energy efficiency of machinery. Because of its low friction, PTFE is used in industrial applications where sliding action of parts is required, such as with bearings, gears, slide plates, etc. In these applications, it delivers significantly better performance than nylon or acetal. 3M has taken this versatile compound through an extrusion process to create a thin film, then paired the film with 3MÂ’s unique pressure sensitive adhesives to make these PTFE tapes. Innovative, high performance 3M PTFE tapes are reliable, durable and reduce friction.

Important Links:

Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2023. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective July 2021. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2023. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
