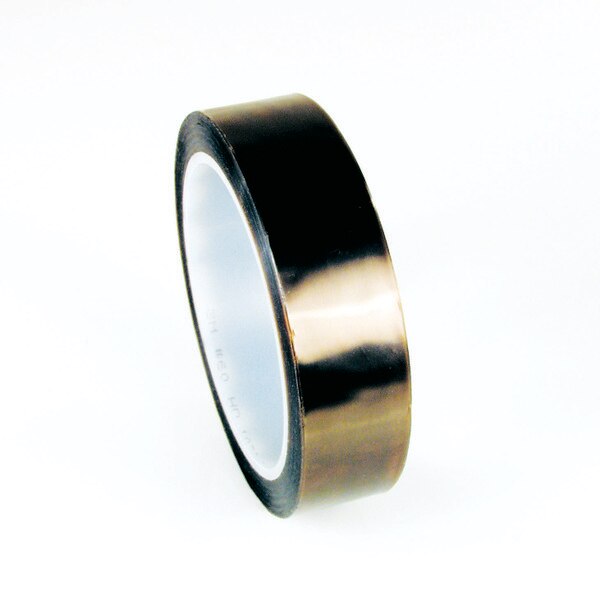

3M PTFE Film Electrical Tape 63, 1/2 x 36 yd, 18 Rolls/Case
Details
Details
Product Name: 3M™ PTFE Film Electrical Tape 63, 1/2 x 36 yd, 18 Rolls/Case
Product Description: 3M™ PTFE Film Electrical Tape 63 is a PTFE film backed slip resistant tape. This 600V rated tape is suitable for use on coils, capacitors and wire harnesses and withstands a temperature range of 32 to 311 °F (0 to 155 °C). This flame retardant tape has an acrylic adhesive that offers exceptional adherence and resists solvents.
3M™ Tape 63 is suitable for use where chemical properties are significant. This tape has PTFE film backing and is flame retardant, as well as free from carbonizing materials. UL Listed and RoHS 2011/65/EU Compliant.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100044403
- Legacy Stock Number: 80610878318
- 3M Catalog Number: 63-1/2"X36YD
- Sales UOM: Roll
- Sales UPC: 00051138492342 (051138492342)
- Smallest Saleable Unit UPC: 50051138492347 (051138492347)
- Shipper UPC: 50051138492347 (051138492347)
- Typical Lead Time: 14 Days
- Shelf Life: 1825 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: 3M™ Tape 63 is suitable for use where chemical properties are significant. This tape has PTFE film backing and is flame retardant, as well as free from carbonizing materials. UL Listed and RoHS 2011/65/EU Compliant.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
- Acrylic Adhesive
- Excellent absorption of electrical insulating resins and varnishes
- The conformable, PTFE-film backing resists temperature as well as chemicals
- UL Listed and RoHS 2011/65/EU Compliant
