*Obsolete Please Call*|3M PTFE Film Electrical Tape 60, 1/4 in x 36 yd, Mini-Case, 3-in core
Details
Details

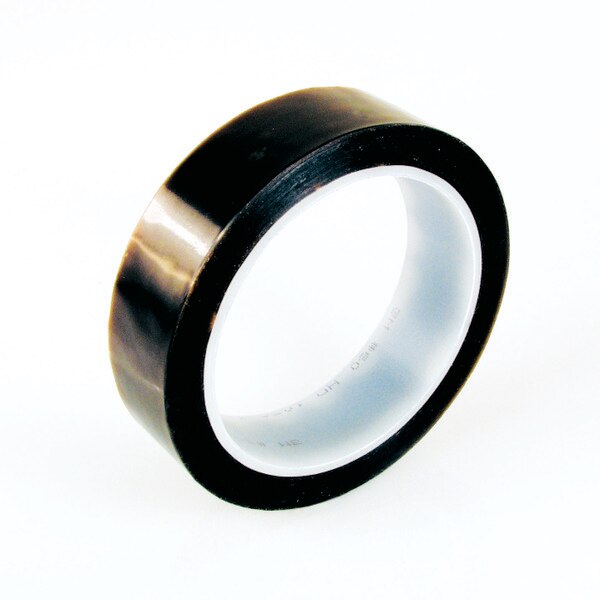

Product Name: 3M™ PTFE Film Electrical Tape 60, 1/4 in x 36 yd, Mini-Case, 3-in core
Product Description: 3M™ PTFE Film Electrical Tape 60 is a PTFE film backed electrical tape. This flame retardant tape is suitable for use on high temperature coils, wire harnesses and capacitors where high dielectric and breaking strength are required. This tape is 600V rated and withstands a temperature range of 32 to 356 °F (0 to 180 °C).
3M™ Tape 60 has a thermosetting, silicon adhesive that provides optimized adherence. This PTFE tape is suitable for minimum shrinkage applications over a wide range of temperatures. UL Listed and RoHS 2011/65/EU Compliant.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000058472
- Legacy Stock Number: 80610880785
- 3M Catalog Number: 60-1/4"X36YD
- Sales UOM: Roll
- Sales UPC: 00051138494988 (051138494988)
- Smallest Saleable Unit UPC: 50051138494983 (051138494983)
- Shipper UPC: 50051138494983 (051138494983)
- Typical Lead Time: 14 Days
- Shelf Life: 1825 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: 3M™ Tape 60 has a thermosetting, silicon adhesive that provides optimized adherence. This PTFE tape is suitable for minimum shrinkage applications over a wide range of temperatures. UL Listed and RoHS 2011/65/EU Compliant.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
- Aggressive rubber resin adhesive
- Flame-retardant
- PTFE film backing for use in applications that require minimum shrinkage and stability
- Resistant to chemicals as well as high arcs
- Suitable for use on high-temperature coils, wire harnesses and capacitors
- UL Listed and RoHS 2002/65/EC Compliant
- Withstands a temperature range of 32 to 356 °F (0 to 180 °C)
Product Name: 3M™ PTFE Film Electrical Tape 60, 1/4 in x 36 yd, Mini-Case, 3-in core
Product Description: 3M™ PTFE Film Electrical Tape 60 is a PTFE film backed electrical tape. This flame retardant tape is suitable for use on high temperature coils, wire harnesses and capacitors where high dielectric and breaking strength are required. This tape is 600V rated and withstands a temperature range of 32 to 356 °F (0 to 180 °C).
3M™ Tape 60 has a thermosetting, silicon adhesive that provides optimized adherence. This PTFE tape is suitable for minimum shrinkage applications over a wide range of temperatures. UL Listed and RoHS 2011/65/EU Compliant.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000058472
- Legacy Stock Number: 80610880785
- 3M Catalog Number: 60-1/4"X36YD
- Sales UOM: Roll
- Sales UPC: 00051138494988 (051138494988)
- Smallest Saleable Unit UPC: 50051138494983 (051138494983)
- Shipper UPC: 50051138494983 (051138494983)
- Typical Lead Time: 14 Days
- Shelf Life: 1825 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: 3M™ Tape 60 has a thermosetting, silicon adhesive that provides optimized adherence. This PTFE tape is suitable for minimum shrinkage applications over a wide range of temperatures. UL Listed and RoHS 2011/65/EU Compliant.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
