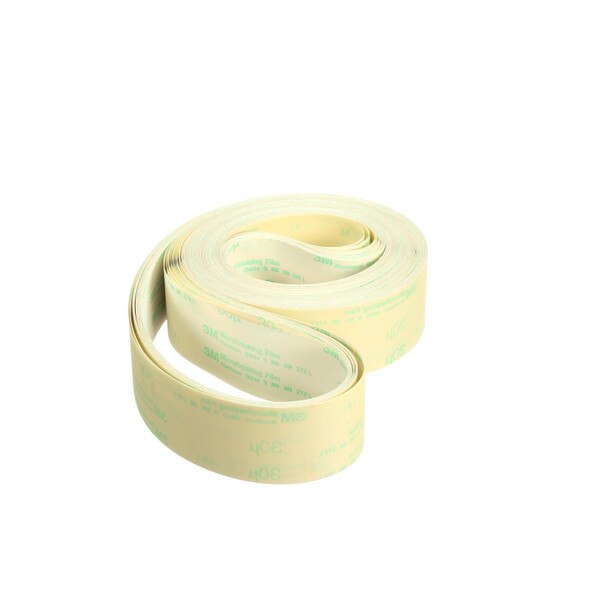

3M Microfinishing Film Belt 272L, 30 Mic 5MIL, Type UK, 3 in x 168 in, 50 ea/Case
Details
- Available in a versatile range of grades, so operators can select the right grade for their application
- Durable 5 mil film backing wonÂ’t deflect when run, so it can stand up to contours
- Excellent choice for applications requiring fine finishes
- Features a closed coat construction for finish consistency
- Micron graded aluminum oxide mineral cuts sharp but wonÂ’t gouge or mar the substrate
Product Name: 3M™ Microfinishing Film Belt 272L, 30 Mic 5MIL, Type UK, 3 in x 168 in, 50 ea/Case
Product Description: 3M™ Microfinishing Film Belt 272L was designed to deliver close tolerance precision finishes on a versatile range of substrates – from gelcoat and soft rubber to fiberglass and metals.
Aluminum Oxide Mineral
We design 3M™ Microfinishing Film Belt 272L by anchoring aluminum oxide mineral to a polyester film backing with resin. This belt is uniquely suited to help with sheet polishing, finishing, and flat finishing.
We chose aluminum oxide mineral for this abrasive belt, as it is a popular choice among industrial professionals who favor the fast cut rate and long life. Aluminum oxide’s hardness, strength and low heat retention help the belt withstand the repeated wear that grinding and finishing often demand
Features a Water-Resistant Polyester Backing
The polyester film backing on 3M™ Microfinishing Film Belt 272L is water resistant, so the belt can be run wet or dry. By applying a lubricant, like water, as the abrasive runs, operators may be able to wash away swarf and debris that tend to clog the abrasive or warp and discolor the substrate. The resin bond that fastens aluminum oxide to the backing helps the abrasive stay cool, because it breaks down gradually as the belt rotates.
Available in a Range of Grades
Given that it’s available in a versatile range of grades – from 9 to 100 micron – operators can select the right grade of 3M™ Microfinishing Film Belt 272L for their unique application. Higher grades, like 100 micron, are good for higher removal processes, while lower grades, like 9, are good for final, fine finishes.
Altogether, this film-backed belt enables you to quickly d achieve desired Ra (roughness average) and other surface finish parameters. These are some of the reasons why this belt is used across industries – from metalworking to woodworking.
Technical Specifications:
- Country of Origin: United Kingdom
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010328783
- Legacy Stock Number: 60600145480
- Sales UOM: Each
- Sales UPC: 00051111693032 (051111693032)
- Smallest Saleable Unit UPC: 50051111693037 (051111693037)
- Shipper UPC: 50051111693037 (051111693037)
- Typical Lead Time: 10 Days
- Shelf Life: 3650 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Aluminum Oxide Mineral
We design 3M™ Microfinishing Film Belt 272L by anchoring aluminum oxide mineral to a polyester film backing with resin. This belt is uniquely suited to help with sheet polishing, finishing, and flat finishing.
We chose aluminum oxide mineral for this abrasive belt, as it is a popular choice among industrial professionals who favor the fast cut rate and long life. Aluminum oxide’s hardness, strength and low heat retention help the belt withstand the repeated wear that grinding and finishing often demand
Features a Water-Resistant Polyester Backing
The polyester film backing on 3M™ Microfinishing Film Belt 272L is water resistant, so the belt can be run wet or dry. By applying a lubricant, like water, as the abrasive runs, operators may be able to wash away swarf and debris that tend to clog the abrasive or warp and discolor the substrate. The resin bond that fastens aluminum oxide to the backing helps the abrasive stay cool, because it breaks down gradually as the belt rotates.
Available in a Range of Grades
Given that it’s available in a versatile range of grades – from 9 to 100 micron – operators can select the right grade of 3M™ Microfinishing Film Belt 272L for their unique application. Higher grades, like 100 micron, are good for higher removal processes, while lower grades, like 9, are good for final, fine finishes.
Altogether, this film-backed belt enables you to quickly d achieve desired Ra (roughness average) and other surface finish parameters. These are some of the reasons why this belt is used across industries – from metalworking to woodworking.
Important Links:
Flyer
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
