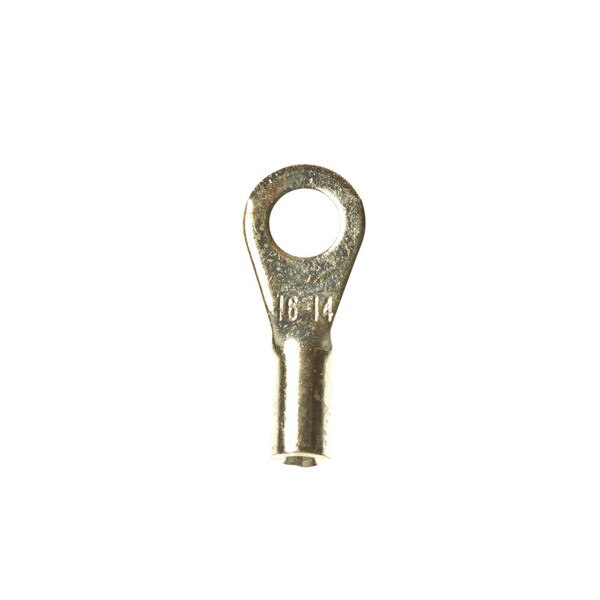

3M Scotchlok Ring Non-Insulated, 100/bottle, MU14-8RLX, standard-style ring tongue fits around the stud, 500/Case
Details
Details
Product Name: 3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, MU14-8RLX, standard-style ring tongue fits around the stud, 500/Case
Product Description: 3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010398241
- Legacy Stock Number: 80611466840
- 3M Catalog Number: MU14-8RLX
- Sales UOM: Each
- Sales UPC: 00051128590386 (051128590386)
- Smallest Saleable Unit UPC: 30051128590387 (051128590387)
- Shipper UPC: 50051128590381 (051128590381)
- Typical Lead Time: 10 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.
Important Links:
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Beveled mouth offers easy insertion of wires
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Standard-style ring tongue fits around the stud
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
