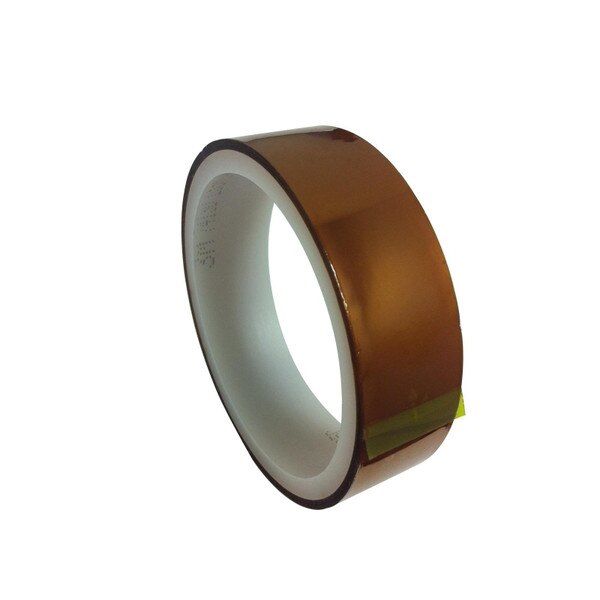

3M Low-Static Non-Silicone Polyimide Film Tape 7419, 480 mm x 33 m
Details
Details
Product Name: 3M™ Low-Static Non-Silicone Polyimide Film Tape 7419, 480 mm x 33 m
Product Description: 3M™ Low Static, Non Silicone Polyimide Film Tape 7419 with DuPont™ Kapton® polyimide film and acrylic adhesive used for PCB solder masking and other high temperature applications. Low Static.
This high temperature tape utilizes a non-silicone adhesive formulation which eliminates concerns about silicone contamination on the masked areas. It also has designed in static dissipative performance attributes and produces very low static charge during unwind and removal making it desirable in static sensitive applications. 3M tape 7419 has been designed to remove cleanly from a variety of typical electronic substrates including FR-4, polyimide, gold, copper, and silicon after high temperature processing.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010370730
- Legacy Stock Number: 70004030303
- 3M Catalog Number: 7419
- Sales UOM: Roll
- Sales UPC: 00051111897294 (051111897294)
- Smallest Saleable Unit UPC: 50051111897299 (051111897299)
- Shipper UPC: 50051111897299 (051111897299)
- Typical Lead Time: 14 Days
- Shelf Life: 548 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: This high temperature tape utilizes a non-silicone adhesive formulation which eliminates concerns about silicone contamination on the masked areas. It also has designed in static dissipative performance attributes and produces very low static charge during unwind and removal making it desirable in static sensitive applications. 3M tape 7419 has been designed to remove cleanly from a variety of typical electronic substrates including FR-4, polyimide, gold, copper, and silicon after high temperature processing.
Important Links:
Tech Data Sheet
- Non-silicone adhesive formulation eliminates the potential for silicone contamination which can interfere with subsequent bonding or conformal coating operations.
- Product is wound on a polyethylene tape core
- Specially formulated acrylic adhesive is resistant to typical solder mask temperatures for short periods of time. Stays firmly in place during processing and removes cleanly from typical electronic substrates even after 10 min @ 500 degree F (260 degree C).
- The high temperature acrylic adhesive also has excellent chemical resistance and should be considered for demanding chemical masking applications.
Product Name: 3M™ Low-Static Non-Silicone Polyimide Film Tape 7419, 480 mm x 33 m
Product Description: 3M™ Low Static, Non Silicone Polyimide Film Tape 7419 with DuPont™ Kapton® polyimide film and acrylic adhesive used for PCB solder masking and other high temperature applications. Low Static.
This high temperature tape utilizes a non-silicone adhesive formulation which eliminates concerns about silicone contamination on the masked areas. It also has designed in static dissipative performance attributes and produces very low static charge during unwind and removal making it desirable in static sensitive applications. 3M tape 7419 has been designed to remove cleanly from a variety of typical electronic substrates including FR-4, polyimide, gold, copper, and silicon after high temperature processing.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010370730
- Legacy Stock Number: 70004030303
- 3M Catalog Number: 7419
- Sales UOM: Roll
- Sales UPC: 00051111897294 (051111897294)
- Smallest Saleable Unit UPC: 50051111897299 (051111897299)
- Shipper UPC: 50051111897299 (051111897299)
- Typical Lead Time: 14 Days
- Shelf Life: 548 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: This high temperature tape utilizes a non-silicone adhesive formulation which eliminates concerns about silicone contamination on the masked areas. It also has designed in static dissipative performance attributes and produces very low static charge during unwind and removal making it desirable in static sensitive applications. 3M tape 7419 has been designed to remove cleanly from a variety of typical electronic substrates including FR-4, polyimide, gold, copper, and silicon after high temperature processing.
Important Links:
Tech Data Sheet
