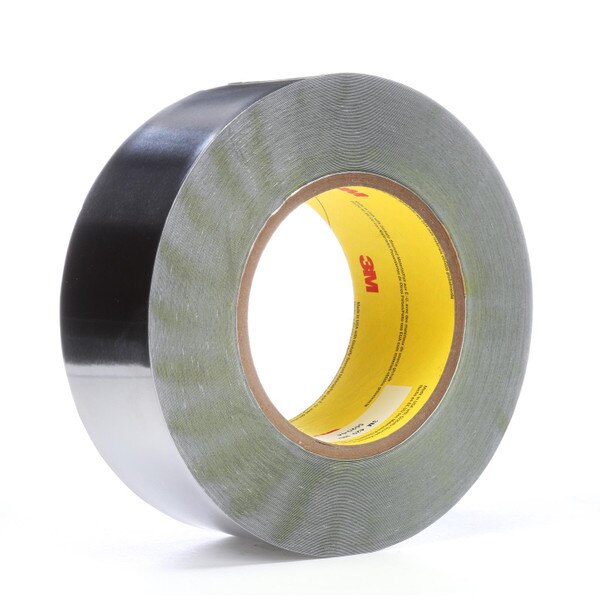

3M Lead Foil Tape 420, Dark Silver, 4 in x 36 yd, 6.8 mil, Roll
Details
- Conformable tape resists flame, moisture, weather, UV degradation, and many chemicals used in electroplating and anodizing processes
- Liner allows tape to be die-cut into specific shapes for assembly and manufacturing processes
- Performs over a wide variety of temperatures
- The rubber-based adhesive bonds well to a variety of surfaces, including most metals
Product Name: 3M™ Lead Foil Tape 420, Dark Silver, 4 in x 36 yd, 6.8 mil, Roll
Product Description: 3M™ Lead Foil Tape 420 is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation. Mated with an easy-release film liner, this malleable tape can be shaped into complex or detailed patterns or die-cut into specific shapes to meet assembly and manufacturing process needs.
Pliable and Conductive Lead Tape
3M™ Lead Foil Tape 420 is a dark gray, lead foil backed tape coated with a distinct green rubber adhesive that offers good initial grab and a long-lasting bond that removes cleanly from most surfaces. It is an extremely conformable and pliable tape that can be formed into detailed and intricate shapes and patterns. The lead foil backing can be burnished to fully cover the adhesive and allow full contact of the lead foil to the metal base. This metal to metal contact results in a continuation of the electrical path, reducing build-up at the adhesive interface. This lead foil tape is formulated to be electrically and thermally conductive and carries a strong acid and base resistance, making it ideal for electroplating or as a radiation barrier.
Application Ideas
- Masking applications in electroplating
- Radiation barrier
- Moisture barrier
- Chemical milling
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100219356
- Legacy Stock Number: UU010880142
- 3M Catalog Number: 420
- Sales UOM: Roll
- Sales UPC: 00638060571408 (638060571408)
- Smallest Saleable Unit UPC: 00000000000nan (000000000nan)
- Shipper UPC: 00000000000nan (000000000nan)
- Typical Lead Time: 40 Days
- Shelf Life: 547 Days
Additional Information:
Pliable and Conductive Lead Tape
3M™ Lead Foil Tape 420 is a dark gray, lead foil backed tape coated with a distinct green rubber adhesive that offers good initial grab and a long-lasting bond that removes cleanly from most surfaces. It is an extremely conformable and pliable tape that can be formed into detailed and intricate shapes and patterns. The lead foil backing can be burnished to fully cover the adhesive and allow full contact of the lead foil to the metal base. This metal to metal contact results in a continuation of the electrical path, reducing build-up at the adhesive interface. This lead foil tape is formulated to be electrically and thermally conductive and carries a strong acid and base resistance, making it ideal for electroplating or as a radiation barrier.
Application Ideas
- Masking applications in electroplating
- Radiation barrier
- Moisture barrier
- Chemical milling
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2023. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2024. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective July 2021. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2023. Refer to SDS or comment for identification of SVHC(s).
