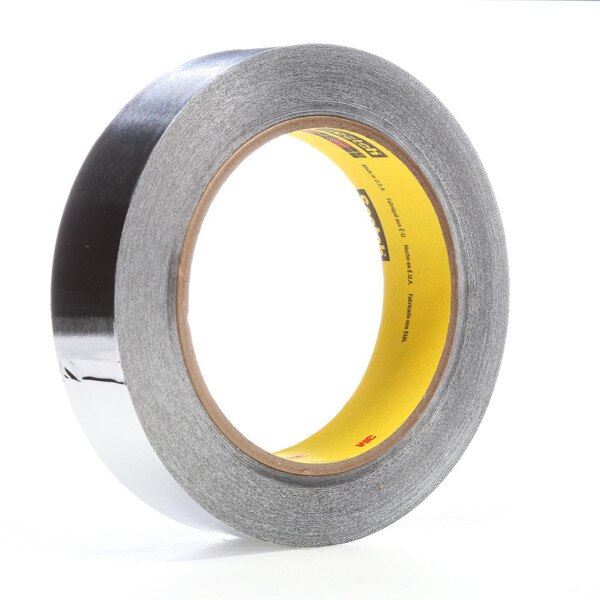

3M High Temperature Aluminum Foil Tape 433, Silver, 4 in x 60 yd, 3.6 mil, 2 Rolls/Case
Details
Details
Product Name: 3M™ High Temperature Aluminum Foil Tape 433, Silver, 4 in x 60 yd, 3.6 mil, 2 Rolls/Case
Product Description: For heat shielding applications such as wrapping over and along thermal insulation, use 3M™ High Temperature Aluminum Foil Tape 433. This dead soft aluminum foil tape is coated with a clear silicone pressure sensitive adhesive that bonds well to a variety of surfaces and excels in high temperature applications, where other adhesive tapes may fail.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010334092
- Legacy Stock Number: 70006314804
- 3M Catalog Number: 433
- Sales UOM: Roll
- Sales UPC: 00021200497735 (021200497735)
- Smallest Saleable Unit UPC: 50021200497730 (021200497730)
- Shipper UPC: 50021200497730 (021200497730)
- Typical Lead Time: 40 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2020. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
- Can be used to improve heating and cooling efficiency
- Can withstand limited exposure up to 600ºF/316ºC for heat shielding applications
- Dead soft aluminum foil backing conforms to curved and uneven surfaces
- Flame resistant – meets requirements of F.A.R. 25.853(a)
- Thermally conductive tape helps dissipate heat to protect temperature sensitive materials
- UL Recognized component (file QQQW2.MH122798)
Product Name: 3M™ High Temperature Aluminum Foil Tape 433, Silver, 4 in x 60 yd, 3.6 mil, 2 Rolls/Case
Product Description: For heat shielding applications such as wrapping over and along thermal insulation, use 3M™ High Temperature Aluminum Foil Tape 433. This dead soft aluminum foil tape is coated with a clear silicone pressure sensitive adhesive that bonds well to a variety of surfaces and excels in high temperature applications, where other adhesive tapes may fail.
Withstand High Temperatures when Seaming, Sealing and Splicing
Our 3M™ High Temperature Aluminum Foil Tape 433 is designed to excel in a variety of seaming, splicing and sealing applications where high temperatures are a concern. This dead soft aluminum backed tape is coated with a pressure sensitive silicone adhesive that bonds to a variety of difficult substrates while maintaining a strong and reliable bond, even at high temperatures. This tape boasts an excellent performance range from -65ºF to 600ºF (-54ºC to 316ºC) and meets flame resistance requirements of F.A.R. 25.853(a) and is a UL Recognized component (file QQQW2.MH122798).
- High temperature heat shielding applications
- Splice jumbo rolls of aluminum foil
- Hold last lap of narrow width rolls during metal annealing process
- Cover heating elements or wires to distribute heat
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010334092
- Legacy Stock Number: 70006314804
- 3M Catalog Number: 433
- Sales UOM: Roll
- Sales UPC: 00021200497735 (021200497735)
- Smallest Saleable Unit UPC: 50021200497730 (021200497730)
- Shipper UPC: 50021200497730 (021200497730)
- Typical Lead Time: 40 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Withstand High Temperatures when Seaming, Sealing and Splicing
Our 3M™ High Temperature Aluminum Foil Tape 433 is designed to excel in a variety of seaming, splicing and sealing applications where high temperatures are a concern. This dead soft aluminum backed tape is coated with a pressure sensitive silicone adhesive that bonds to a variety of difficult substrates while maintaining a strong and reliable bond, even at high temperatures. This tape boasts an excellent performance range from -65ºF to 600ºF (-54ºC to 316ºC) and meets flame resistance requirements of F.A.R. 25.853(a) and is a UL Recognized component (file QQQW2.MH122798).
- High temperature heat shielding applications
- Splice jumbo rolls of aluminum foil
- Hold last lap of narrow width rolls during metal annealing process
- Cover heating elements or wires to distribute heat
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2020. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
