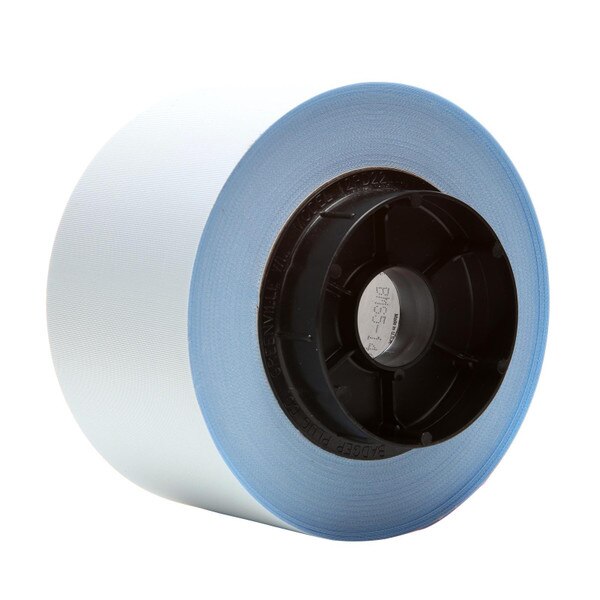

3M Glass Cloth Tape 398FR, White, 6 in x 36 yd, 7 mil, 8 Roll/Case
Details
- Acrylic adhesive provides excellent long-aging properties ideal for many permanent applications
- Available on a skip-slit liner for ease of application
- Durable backing provides abrasion and puncture resistance for long-term aging performance in aerospace applications
- Formulation does not contain antimony
- High conformability to bond over a variety of difficult textures and uneven or curved surfaces
- Meets flame retardant specifications of F.A.R. 25.853(a)? and F.A.R. 25.855(d)? and is EU Compliant
- Meets requirements of and can be qualified to Boeing material specifications BMS 5-146 Type I, Class I, Grade A
- Offers good temperature resistance of -20ºF/-29ºC to 250ºF/121ºC
Product Name: 3M™ Glass Cloth Tape 398FR, White, 6 in x 36 yd, 7 mil, 8 Roll/Case
Product Description: Designed primarily for sealing aircraft cargo bay panels, 3M™ Glass Cloth Tape 398FR is an ideal choice for applications requiring high adhesion, an abrasion resistant backing and flame retardant properties. This tape offers a durable abrasion and puncture resistant glass cloth backing that is conformable for ease of installation.
Permanently Seal and Protect
Our 3M™ Glass Cloth Tape 398FR features a white glass-cloth backing designed to provide a clean finished appearance. This tape features a pressure sensitive, acrylic adhesive that adheres to a variety of substrates. It is available on a skip-slit liner for ease of application. Once bonded, this adhesive provides high, secure adhesion for extended periods in a wide range of climate and temperature conditions, including temperatures as high as 250°F/121°C. A blue polyethylene film liner assists with ease of application. This tape features good puncture resistance, high tensile strength and superior abrasion resistance.
3M™ Glass Cloth Tape 398FR meets the flame retardant specifications of F.A.R. Part 25.853(a), F.A.R. Part 25.855(d) and MIL A-3316C 3 13.1 and 3 13.2. It is EU compliant per directive 2003/11/EC of the European Parliament and the Council of February 6, 2003 amending Council Directive 76/769/EEC which restricts the use of penta-BDE and octa-BDE flame retardants. This tape meets requirements of and can be qualified to Boeing material specifications BMS 5-146 Type I, Class I, Grade A.
Recommended Applications
- Sealing thermal and acoustic insulation panels where high adhesion and flame retardancy are needed
- Aircraft window sealing, duct sealing and seat repair
- Protection of wire harnesses, electrical cables or hoses from temperature extremes and abrasion
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000049003
- Legacy Stock Number: 70006351525
- 3M Catalog Number: 398FR
- Sales UOM: Roll
- Sales UPC: 00021200966712 (021200966712)
- Smallest Saleable Unit UPC: 50021200966717 (021200966717)
- Shipper UPC: 50021200966717 (021200966717)
- Typical Lead Time: 10 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Permanently Seal and Protect
Our 3M™ Glass Cloth Tape 398FR features a white glass-cloth backing designed to provide a clean finished appearance. This tape features a pressure sensitive, acrylic adhesive that adheres to a variety of substrates. It is available on a skip-slit liner for ease of application. Once bonded, this adhesive provides high, secure adhesion for extended periods in a wide range of climate and temperature conditions, including temperatures as high as 250°F/121°C. A blue polyethylene film liner assists with ease of application. This tape features good puncture resistance, high tensile strength and superior abrasion resistance.
3M™ Glass Cloth Tape 398FR meets the flame retardant specifications of F.A.R. Part 25.853(a), F.A.R. Part 25.855(d) and MIL A-3316C 3 13.1 and 3 13.2. It is EU compliant per directive 2003/11/EC of the European Parliament and the Council of February 6, 2003 amending Council Directive 76/769/EEC which restricts the use of penta-BDE and octa-BDE flame retardants. This tape meets requirements of and can be qualified to Boeing material specifications BMS 5-146 Type I, Class I, Grade A.
Recommended Applications
- Sealing thermal and acoustic insulation panels where high adhesion and flame retardancy are needed
- Aircraft window sealing, duct sealing and seat repair
- Protection of wire harnesses, electrical cables or hoses from temperature extremes and abrasion
Important Links:
Tech Data Sheet
Flyer
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
