3M Fire Barrier Wrap Strips FS-195+, 2 in x 24 in, 10 Each/Case
Details
- Aluminum foil exterior makes for accurate, effective installation
- Easily installed – simply wrap, secure and seal
- Firestop tested up to 4 hours in accordance with ASTM E 814 (UL 1479)
- Material is intumescent for thermal insulation (Intumescent material effectively firestops non-metallic penetrants)
- Re-enterable material saves time and money after installation
Product Name: 3M™ Fire Barrier Wrap Strips FS-195+, 2 in x 24 in, 10 Each/Case
Product Description: 3M™ Fire Barrier Wrap Strips FS-195+ are a convenient and cost-effective firestop for plastic pipe, insulated pipe and cable, blank and other penetrations in fire-rated wall, floor and floor/ceiling assemblies. This intumescent firestop with aluminum foil exterior blocks flame, heat and toxic by-products of combustion. Installers simply wrap the strips around the penetration, secure and seal.
Firestop Material for a Range of Applications
Engineered as a wrappable firestop for applications including blank penetrations, large openings and even plastic and other non-metallic pipe penetration systems, our 3M™ Fire Barrier Wrap Strips FS-195+ are fire-rated up to 4 hours in tested and listed systems and meets ASTM E814 (UL 1479) performance standards. Intumescent material expands when heated to deliver excellent thermal insulation, as well as provide an effective firestop for non-metallic penetrants.
Recommended Applications
- Plastic pipe and conduit penetrations up to 10” diameter
- Metal pipe penetrations
- Insulated pipe penetrations
- Blank penetrations
- Bus ducts
- Cable trays and bundles
- In conjunction with 3M™ Fire Barrier Composite Sheet CS-195+ for large openings
- Use with 3M™ Fire Barrier RC-1 Restricting Collar

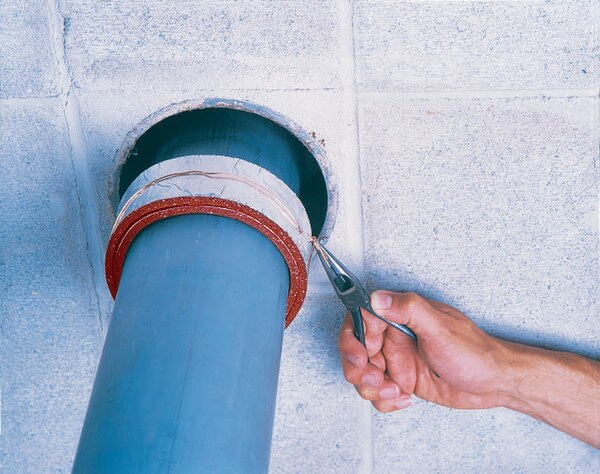

3M™ Fire Barrier Wrap Strips FS-195+ can be installed into a wide range of applications because of its convenient wrappable strip construction – the flexible, firestop material comes in strips which can be quickly and easily wrapped around the penetration. Installers simply apply the strip, cut it with common tools, secure it in place with a 3M™ Fire Barrier RC-1 Restricting Collar, steel tie wire and/or 3M™ Composite Sheet CS-195+ and seal it with materials such as 3M™ Fire Barrier Sealant CP 25WB+ or Moldable Putty. It is designed for excellent weatherability against temperature and humidity, and is re-enterable to save added time and material costs after installation.
The Science of Better Fire Protection from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our adhesives, sealants and protective coatings including 3M™ Fire Barrier Wrap Strips FS-195+ – to improve performance, and to help businesses like yours operate faster, better and more efficiently.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000006371
- Legacy Stock Number: 98040022224
- 3M Catalog Number: FS-195+
- Sales UOM: Each
- Sales UPC: 00051115071157 (051115071157)
- Smallest Saleable Unit UPC: 50051115071152 (051115071152)
- Shipper UPC: 50051115071152 (051115071152)
- Typical Lead Time: 2 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Firestop Material for a Range of Applications
Engineered as a wrappable firestop for applications including blank penetrations, large openings and even plastic and other non-metallic pipe penetration systems, our 3M™ Fire Barrier Wrap Strips FS-195+ are fire-rated up to 4 hours in tested and listed systems and meets ASTM E814 (UL 1479) performance standards. Intumescent material expands when heated to deliver excellent thermal insulation, as well as provide an effective firestop for non-metallic penetrants.
Recommended Applications
- Plastic pipe and conduit penetrations up to 10” diameter
- Metal pipe penetrations
- Insulated pipe penetrations
- Blank penetrations
- Bus ducts
- Cable trays and bundles
- In conjunction with 3M™ Fire Barrier Composite Sheet CS-195+ for large openings
- Use with 3M™ Fire Barrier RC-1 Restricting Collar
3M™ Fire Barrier Wrap Strips FS-195+ can be installed into a wide range of applications because of its convenient wrappable strip construction – the flexible, firestop material comes in strips which can be quickly and easily wrapped around the penetration. Installers simply apply the strip, cut it with common tools, secure it in place with a 3M™ Fire Barrier RC-1 Restricting Collar, steel tie wire and/or 3M™ Composite Sheet CS-195+ and seal it with materials such as 3M™ Fire Barrier Sealant CP 25WB+ or Moldable Putty. It is designed for excellent weatherability against temperature and humidity, and is re-enterable to save added time and material costs after installation.
The Science of Better Fire Protection from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our adhesives, sealants and protective coatings including 3M™ Fire Barrier Wrap Strips FS-195+ – to improve performance, and to help businesses like yours operate faster, better and more efficiently.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
