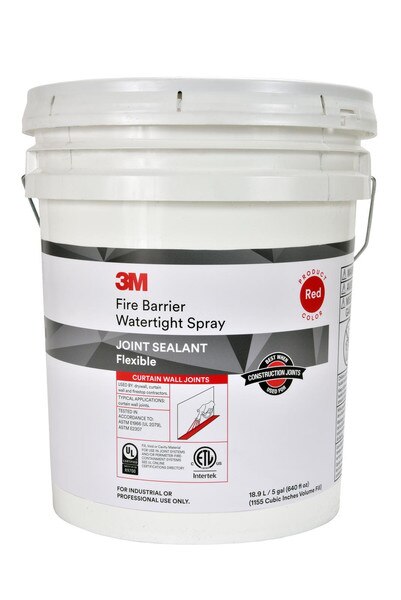

3M Fire Barrier Water Tight Spray, Red, 5 Gallon (Pail), Drum

Details

• CPVC compatible
• Helps minimize noise transfer (STC Rated)
• Meets UL Water Leakage Test, W-Rating— Class One requirements for systems tested and listed in accordance with ANSI/UL 1479
• Seals interior construction voids
• Superior washout resistance – Passes ASTM D 6904 24 hour exposure after 2 hour cure time
• Up to 3-hour fire protection in construction joints per ASTM E 1966 (UL 2079)

Product Name: 3M™ Fire Barrier Water Tight Spray, Red, 5 Gallon (Pail), Drum

Product Description: Fire Barrier Watertight Spray is a sprayable, moisture-curing hybrid siliconized polymer that forms a tough, elastomeric coating. This material is used to firestop perimeter joints (curtain wall joints) and other construction joints that need to prevent fire and water from moving floor to floor.

First Line of Defense
3M™ Fire Barrier Watertight Spray helps control twill act as a barrier to water leakage and airborne sound transmission, while helping to control the transmission of fire, heat and smoke before, during and after exposure to fire. It is a sprayable, moisture-curing hybrid siliconized polymer that forms a tough, elastomeric coating. This material is used to firestop perimeter joints (curtain wall joints) and other construction joints that need to prevent fire and water from moving floor to floor. The spray meets UL Water Leakage Test, W Rating – Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479 and is tested in accordance with ASTM G 21 standard practice for determining resistance of synthetic polymeric materials to fungi. This spray provides remarkable adhesion on most construction surfaces, including: concrete, gypsum, metal, plastic, wood and insulation. The seal is for interior construction voids such as blank openings, metallic pipes, non-metallic pipes, cables, cable trays, insulated pipes, busways, HVAC vents and ducts, combos and construction joints.

Recommended Applications

• Firestopping
• Smoke sealing
• Water sealing

The Science of Better Fire Protection from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life –developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our adhesives, sealants, protective coatings, devices and the best ways to used them – including Fire Barrier Pass-Through Device Brackets to improve performance, and to help businesses like yours operate faster, better and more efficiently.

Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100139274
- Legacy Stock Number: 98044110041
- 3M Catalog Number: WTS
- Sales UOM: Drum
- Sales UPC: 00076308982324 (076308982324)
- Smallest Saleable Unit UPC: 00076308982324 (076308982324)
- Shipper UPC: 00076308982324 (076308982324)
- Typical Lead Time: 2 Days
- Shelf Life: 365 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT RESTRICTED, AS PER 49 CFR 173.120 (a)(3)
- International Air Transport Association: NOT RESTRICTED, AS PER IATA 3.3.1.3 (a)
Additional Information:

First Line of Defense
3M™ Fire Barrier Watertight Spray helps control twill act as a barrier to water leakage and airborne sound transmission, while helping to control the transmission of fire, heat and smoke before, during and after exposure to fire. It is a sprayable, moisture-curing hybrid siliconized polymer that forms a tough, elastomeric coating. This material is used to firestop perimeter joints (curtain wall joints) and other construction joints that need to prevent fire and water from moving floor to floor. The spray meets UL Water Leakage Test, W Rating – Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479 and is tested in accordance with ASTM G 21 standard practice for determining resistance of synthetic polymeric materials to fungi. This spray provides remarkable adhesion on most construction surfaces, including: concrete, gypsum, metal, plastic, wood and insulation. The seal is for interior construction voids such as blank openings, metallic pipes, non-metallic pipes, cables, cable trays, insulated pipes, busways, HVAC vents and ducts, combos and construction joints.

Recommended Applications

• Firestopping
• Smoke sealing
• Water sealing

The Science of Better Fire Protection from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life –developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our adhesives, sealants, protective coatings, devices and the best ways to used them – including Fire Barrier Pass-Through Device Brackets to improve performance, and to help businesses like yours operate faster, better and more efficiently.

Important Links:

Tech Data Sheet
Flyer
- EU REACH: This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2020. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2021. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2023. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective January 2024. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective July 2019. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective July 2021. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2020. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2022. Refer to SDS or comment for identification of SVHC(s).; This product, including any article that the product is composed of, does contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59.1 of Regulation No 1907/2006 of the European Parliament and the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), per listing of candidates and Annex XIV. This declaration reflects the substances on the candidate SVHC list, effective June 2023. Refer to SDS or comment for identification of SVHC(s).
