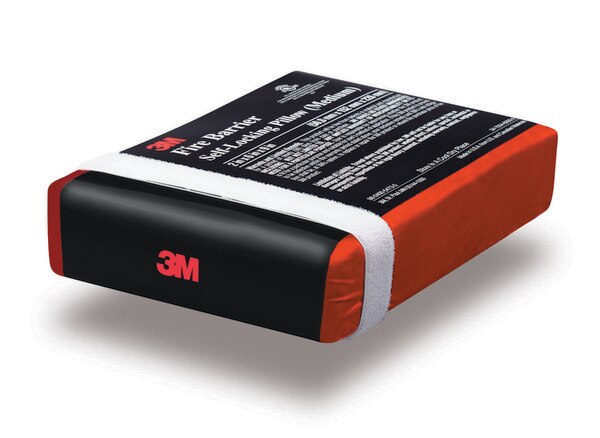

3M Fire Barrier Self-Locking Pillows FB269SL, Medium, 2 in x 6 in x 9 in, 16/Case
Details
- Available in multiple sizes and can be cut in the field for precise fill and compression
- Easy to install, remove and reconfigure to help save time and labor
- Firestop tested for up to 3 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC-S115
- Interlocking strips let installers quickly lock pillows together by hand for fast, accurate firestops
- Intumescent pillows are designed to expand and lock together for tight seal against flame, smoke and toxic gasses
- No wire mesh or additional support required
Product Name: 3M™ Fire Barrier Self-Locking Pillows FB269SL, Medium, 2 in x 6 in x 9 in, 16/Case
Product Description: 3M™ Fire Barrier Self-Locking Pillows are self-contained firestops ideal for medium to large through penetrations. Pillows feature Interlocking strips – installers can easily lock multiple pillows together to achieve precise fill and compression with no additional support required. Intumescent fire-rated pillows are designed to expand during a fire, locking themselves around vital components.
Simply a Better Way to Firestop
Presenting a simpler solution to the time, cost and material challenges of firestopping medium and large through penetration openings: our 3M™ Fire Barrier Self Locking Pillows combine intumescent fire-rated material and a range of sizes with interlocking strips that allow installers to easily lock multiple pillows together without tools. Installers can also cut and reseal the pillows in the field. This makes it easier to assemble ideally-sized firestops for specific penetrations in floors and walls, installed to the correct compressions for maximum effectiveness in new construction or retrofit applications. No wire mesh, steel cover plates or other additional support is required. The pillows are fully re-enterable and reusable – the interlocking strips can be released by hand, making it easy to reconfigure firestop pillows as additional services are added or relocated.
Recommended Applications
- Firestopping medium to large openings containing power or communication cables and conduits
- Gypsum wall, concrete or block wall and concrete floors
- Blank openings up to 540 sq. in. (3483 sq. cm)
- 1 or 2 cable racks or trays per penetration
- Conduit bank, inner duct cable and cable racks or tray applications
- Can be used in conjunction with 3M Moldable Putty+
Fully Tested and Approved
These intumescent, graphite-free 3M™ Fire Barrier Self Locking Pillows are designed to expand during a fire, locking themselves into place to protect vital components and forming a tight seal against the spread of flame, smoke and toxic gasses. They are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC-S115 when installed in listed systems.
The Science of Better Fire Protection from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life –developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our adhesives, sealants, protective coatings and firestop systems like 3M™ Fire Barrier Self-Locking Pillows – to improve performance, and to help businesses like yours operate faster, better and more efficiently.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100138832
- Legacy Stock Number: 98040054730
- 3M Catalog Number: FB269SL
- Sales UOM: Each
- Sales UPC: 00076308894894 (076308894894)
- Smallest Saleable Unit UPC: 00076308894894 (076308894894)
- Shipper UPC: 50051115165790 (051115165790)
- Typical Lead Time: 2 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Simply a Better Way to Firestop
Presenting a simpler solution to the time, cost and material challenges of firestopping medium and large through penetration openings: our 3M™ Fire Barrier Self Locking Pillows combine intumescent fire-rated material and a range of sizes with interlocking strips that allow installers to easily lock multiple pillows together without tools. Installers can also cut and reseal the pillows in the field. This makes it easier to assemble ideally-sized firestops for specific penetrations in floors and walls, installed to the correct compressions for maximum effectiveness in new construction or retrofit applications. No wire mesh, steel cover plates or other additional support is required. The pillows are fully re-enterable and reusable – the interlocking strips can be released by hand, making it easy to reconfigure firestop pillows as additional services are added or relocated.
Recommended Applications
- Firestopping medium to large openings containing power or communication cables and conduits
- Gypsum wall, concrete or block wall and concrete floors
- Blank openings up to 540 sq. in. (3483 sq. cm)
- 1 or 2 cable racks or trays per penetration
- Conduit bank, inner duct cable and cable racks or tray applications
- Can be used in conjunction with 3M Moldable Putty+
Fully Tested and Approved
These intumescent, graphite-free 3M™ Fire Barrier Self Locking Pillows are designed to expand during a fire, locking themselves into place to protect vital components and forming a tight seal against the spread of flame, smoke and toxic gasses. They are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC-S115 when installed in listed systems.
The Science of Better Fire Protection from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life –developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our adhesives, sealants, protective coatings and firestop systems like 3M™ Fire Barrier Self-Locking Pillows – to improve performance, and to help businesses like yours operate faster, better and more efficiently.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
