3M Fire Barrier Moldable Putty Pads MPP+, Red, 4 in x 8 in, (10 Each/Carton) 100 Each/Case
Details
- Applied by hand, with no mixing or tools
- Excellent adhesion to a wide range of construction materials
- Firestop tested for through penetration and membrane applications for up to 4 hours in accordance with ASTM E 814 (UL 1479)
- Non-corrosive to metal, and compatible with synthetic cable jackets
- Pliable one-part intumescent firestop material is designed for wall openings and through penetrations
- Provides draft and cold smoke seal, helps reduce noise transfer
Product Name: 3M™ Fire Barrier Moldable Putty Pads MPP+, Red, 4 in x 8 in, (10 Each/Carton) 100 Each/Case

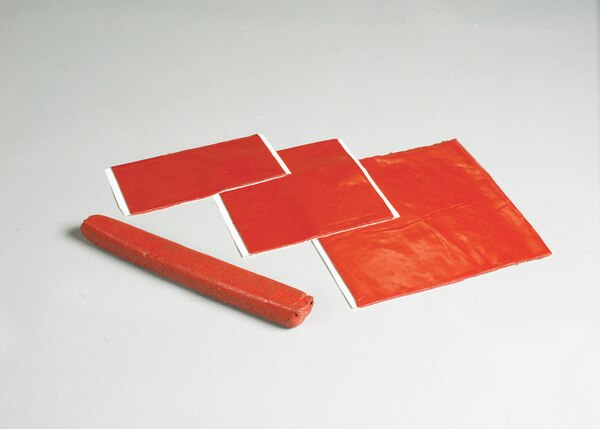

Product Description: 3M™ Fire Barrier Moldable Putty Pads MPP+ are a one-part firestop material used in various fire-rated assemblies, such as electrical box protection. Designed to prevent the spread of fire, smoke and noxious gasses, this intumescent material comes ready to use in convenient 1/10" (2.54 mm) thick pads that are conformable by hand with no mixing or tools. Pads are firestop tested up to 2 hours.
Pliable, Conformable and Shapeable for Exacting Coverage
For applications requiring conformable coverage, these pliable 3M™ Fire Barrier Moldable Putty Pads MPP+ meet a full range of firestop needs that would be impractical with strips, wraps or rolls. Ready to use in convenient 1/10” (2.54 mm) thick pads, this firestop material is designed for excellent adhesion to most construction substrates and is non-corrosive when applied to metal – ideal for use with listed steel or plastic electrical outlet boxes. It is also safe for applications including synthetic cable jackets, making it suitable for firestopping cable bundles. It won’t crumble or dry out, exhibits excellent aging properties and is re-enterable to save time and money after installation. And the pads are extremely simple and cost-effective to install: technicians mold the material by hand directly onto the substrate without mixing or tools. For larger applications, self-adhering pads can be molded together.
- Protection of membrane penetrations for listed metallic and non-metallic electrical boxes
- Wall opening protective to meet building requirements
- Seal gaps between cables in multiple penetrations (including fiber optic inner duct)
- Insulated pipe, electrical conduit and metal pipe penetrations
Fully Tested and Approved
Our intumescent 3M™ Fire Barrier Moldable Putty Pads MPP+ are firestop tested up to 4 hours in accordance with ASTM E 814 (UL 1479). They are tested in accordance with ASTM E 119 (UL 263) up to 2 hours when installed in accordance with the UL wall-opening protective listing (UL Category CLIV), and help reduce noise transfer (STC-Rating of 52 when tested on back-to-back electrical boxes).
Reliable and Affordable Fire Protection
Effective and easy to install, 3M™ Fire Barrier Moldable Putty Pads MPP+ are part of our family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000059410
- Legacy Stock Number: 98040055257
- 3M Catalog Number: MPP+
- Sales UOM: Each
- Sales UPC: 00051115165085 (051115165085)
- Smallest Saleable Unit UPC: 50051115165080 (051115165080)
- Shipper UPC: 50051115165080 (051115165080)
- Typical Lead Time: 2 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT RESTRICTED, AS PER 49 CFR 171.4, MARINE POLLUTANT EXCEPTION
- International Air Transport Association: NOT RESTRICTED, AS PER SPECIAL PROVISION A197, ENVIRONMENTALLY HAZARDOUS SUBSTANCE EXCEPTION
Additional Information:
Pliable, Conformable and Shapeable for Exacting Coverage
For applications requiring conformable coverage, these pliable 3M™ Fire Barrier Moldable Putty Pads MPP+ meet a full range of firestop needs that would be impractical with strips, wraps or rolls. Ready to use in convenient 1/10” (2.54 mm) thick pads, this firestop material is designed for excellent adhesion to most construction substrates and is non-corrosive when applied to metal – ideal for use with listed steel or plastic electrical outlet boxes. It is also safe for applications including synthetic cable jackets, making it suitable for firestopping cable bundles. It won’t crumble or dry out, exhibits excellent aging properties and is re-enterable to save time and money after installation. And the pads are extremely simple and cost-effective to install: technicians mold the material by hand directly onto the substrate without mixing or tools. For larger applications, self-adhering pads can be molded together.
- Protection of membrane penetrations for listed metallic and non-metallic electrical boxes
- Wall opening protective to meet building requirements
- Seal gaps between cables in multiple penetrations (including fiber optic inner duct)
- Insulated pipe, electrical conduit and metal pipe penetrations
Fully Tested and Approved
Our intumescent 3M™ Fire Barrier Moldable Putty Pads MPP+ are firestop tested up to 4 hours in accordance with ASTM E 814 (UL 1479). They are tested in accordance with ASTM E 119 (UL 263) up to 2 hours when installed in accordance with the UL wall-opening protective listing (UL Category CLIV), and help reduce noise transfer (STC-Rating of 52 when tested on back-to-back electrical boxes).
Reliable and Affordable Fire Protection
Effective and easy to install, 3M™ Fire Barrier Moldable Putty Pads MPP+ are part of our family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
