3M Filament-Reinforced Electrical Tape 1039, 1/2 in X 60 yds, Bulk, 3-in paper core, 72 Rolls/Case
Details
Details

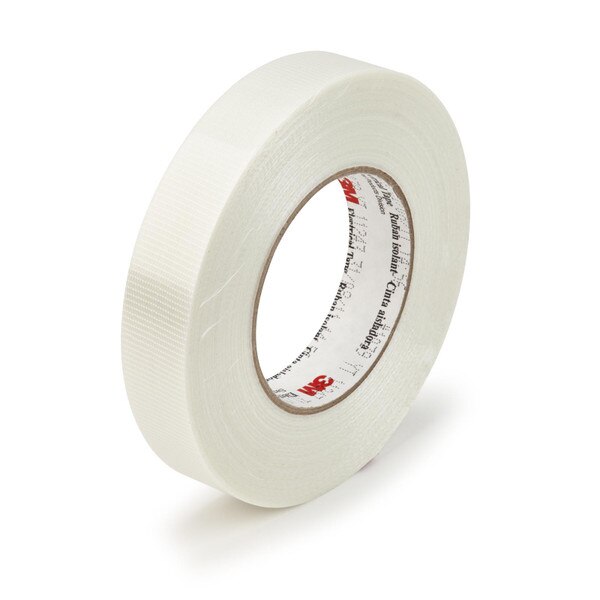

Product Name: 3M™ Filament-Reinforced Electrical Tape 1039, 1/2 in X 60 yds, Bulk, 3-in paper core, 72 Rolls/Case
Product Description: 3M™ Filament Reinforced Electrical Tape 1039 is a 7 mil thick, solvent resistant, electrical filament tape that has a polyester film/glass filament scrim backing and a chemical resistant, acrylic adhesive. The tape is 600V rated and withstands a temperature range of 40 to 266 °F ( 40 to 130 °C).
3M™ Tape 1039 is designed for dry type transformers, motor winding and low voltage applications that require dielectric and mechanical strength. This conformable tape offers excellent dielectric strength, low stretch and high tensile strength. The unique coating on this tape supports excellent bonding with diamond paper, insulation epoxy during the transformer baking process. The tape is ideal for anchoring end turn tapping and lead wires to banding coils and it provides stiffness for excellent handling during coil winding operations. UL Listed and RoHS 2011/65/EU Compliant.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010350276
- Legacy Stock Number: 80611604721
- 3M Catalog Number: 1039 1/2"X60YD
- Sales UOM: Roll
- Sales UPC: 00051128602102 (051128602102)
- Smallest Saleable Unit UPC: 50051128602107 (051128602107)
- Shipper UPC: 50051128602107 (051128602107)
- Typical Lead Time: 5 Days
- Shelf Life: 1825 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: 3M™ Tape 1039 is designed for dry type transformers, motor winding and low voltage applications that require dielectric and mechanical strength. This conformable tape offers excellent dielectric strength, low stretch and high tensile strength. The unique coating on this tape supports excellent bonding with diamond paper, insulation epoxy during the transformer baking process. The tape is ideal for anchoring end turn tapping and lead wires to banding coils and it provides stiffness for excellent handling during coil winding operations. UL Listed and RoHS 2011/65/EU Compliant.
Important Links:
- Acrylic adhesive for excellent adherence and polyester film/glass filament scrim backing for outstanding electrical characteristics
- Offers good initial adhesion to magnet wire, strip copper and insulation materials
- Provides stiffness for excellent handling during coil-winding operations
- Suitable for anchoring end-turn tapping and lead wires to banding coils
- UL Listed and RoHS 2011/65/EU Compliant
- Withstands a temperature range of -40 to 266 °F (-40 to 130 °C)
- Woven, glass mat provides additional reinforcement
