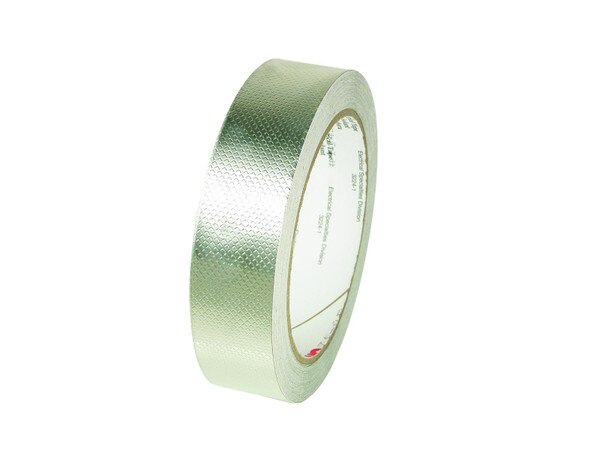

3M Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 3/4 in x 18 yd, 3 in Paper Core, 12 Rolls/Case
Details
Details
Product Name: 3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 3/4 in x 18 yd, 3 in Paper Core, 12 Rolls/Case
Product Description: 3M™ Embossed Tin Plated Copper EMI Shielding Tape 1345 is an EMI shielding tape with an acrylic adhesive. This flame retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
3M™ EMI Shielding Tape 1345 has an embossed, deadsoft, copper foil backing with a pressure sensitive, acrylic adhesive that ensures firm adherence. The tin plated coating on both sides of the tape's foil backing offers outstanding solderability and is resistant to oxidation and corrosion. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. Contact between the backing and the application substrate is established when the embossed backing edges cut through the adhesive layer. The tape withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
Technical Specifications:
- Country of Origin: Taiwan
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100069407
- Legacy Stock Number: 80610876916
- 3M Catalog Number: 1345-3/4"X18YD
- Sales UOM: Roll
- Sales UPC: 00051138494070 (051138494070)
- Smallest Saleable Unit UPC: 50051138494075 (051138494075)
- Shipper UPC: 50051138494075 (051138494075)
- Typical Lead Time: 14 Days
- Shelf Life: 1825 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: 3M™ EMI Shielding Tape 1345 has an embossed, deadsoft, copper foil backing with a pressure sensitive, acrylic adhesive that ensures firm adherence. The tin plated coating on both sides of the tape's foil backing offers outstanding solderability and is resistant to oxidation and corrosion. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. Contact between the backing and the application substrate is established when the embossed backing edges cut through the adhesive layer. The tape withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
Important Links:
Tech Data Sheet
- Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
- Embossed, copper foil backing resists discoloration and oxidation
- Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
- Offers outstanding solderability with tin-plated coating
- Offers stable contact resistance and good shielding effectiveness
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
Product Name: 3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 3/4 in x 18 yd, 3 in Paper Core, 12 Rolls/Case
Product Description: 3M™ Embossed Tin Plated Copper EMI Shielding Tape 1345 is an EMI shielding tape with an acrylic adhesive. This flame retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
3M™ EMI Shielding Tape 1345 has an embossed, deadsoft, copper foil backing with a pressure sensitive, acrylic adhesive that ensures firm adherence. The tin plated coating on both sides of the tape's foil backing offers outstanding solderability and is resistant to oxidation and corrosion. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. Contact between the backing and the application substrate is established when the embossed backing edges cut through the adhesive layer. The tape withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
Technical Specifications:
- Country of Origin: Taiwan
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100069407
- Legacy Stock Number: 80610876916
- 3M Catalog Number: 1345-3/4"X18YD
- Sales UOM: Roll
- Sales UPC: 00051138494070 (051138494070)
- Smallest Saleable Unit UPC: 50051138494075 (051138494075)
- Shipper UPC: 50051138494075 (051138494075)
- Typical Lead Time: 14 Days
- Shelf Life: 1825 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: 3M™ EMI Shielding Tape 1345 has an embossed, deadsoft, copper foil backing with a pressure sensitive, acrylic adhesive that ensures firm adherence. The tin plated coating on both sides of the tape's foil backing offers outstanding solderability and is resistant to oxidation and corrosion. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. Contact between the backing and the application substrate is established when the embossed backing edges cut through the adhesive layer. The tape withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
Important Links:
Tech Data Sheet
