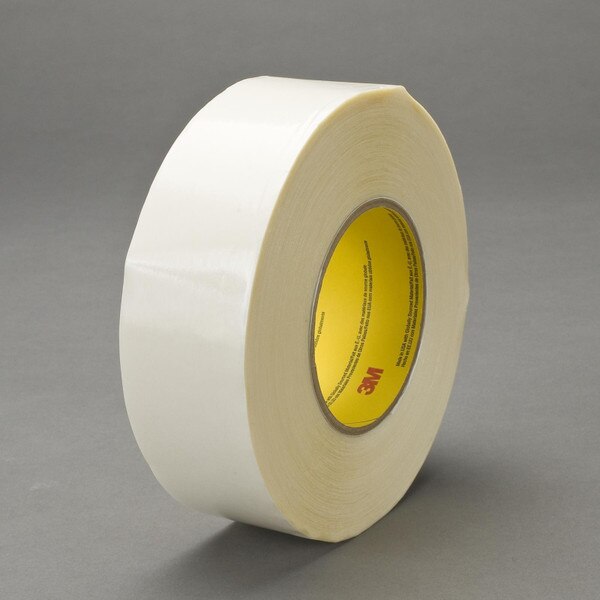

3M Double Coated Tape 9741, Clear, 36 mm x 55 m, 6.5 mil, 32 Roll/Case
Details
- Bonds well to most substrates, including low surface energy films
- Conformable to bond to irregular surfaces
- Double sided adhesion increases dimensional stability for easy handling
- Excellent UV and heat resistance withstands a variety of conditions
- High tack for flying splices
- Red option available for visible splicing applications
- Ultra-high peel strength and excellent shear strength to withstand rigorous splicing applications
Product Name: 3M™ Double Coated Tape 9741, Clear, 36 mm x 55 m, 6.5 mil, 32 Roll/Case
Product Description: 3M™ Double Coated Tape 9741 is a clear polyester film tape with a super aggressive, pressure sensitive acrylic adhesive and a glassine release liner. This tape uses a hand-tearable polyester film that is coated on both sides with a heavy layer of adhesive to allow for superior bonding and conformability to irregular as well as flat surfaces.
Thick and Versatile
3M™ Double Coated Tape 9741 is a 6.5 mil double-sided tape utilizing a 0.5 mil hand-tearable polyester film carrier lined on both sides with acrylic adhesive. It has a high coat weight and adheres well to low surface energy substrates. This product provides excellent UV and heat resistance, and can perform under a wide temperature range (-40°F/-40°C to 200°F/93°C). Once bonded, this tape provides excellent peel and shear strength - making it ideal for rigorous splicing applications and bonding plastics to metals. 3M™ Double Coated Tape 9741 is mounted on a 55# glassine backing to enable ease of deployment. Notably, this product is offered in two colors – clear and red. The red version can be used for visible splicing applications.
Recommended Applications
- High speed splicing applications
- Applications where adhesion to low surface energy substrates is needed
- Bonding decorative trim, plastics and metal profile extrusions
- Attachment to irregular surfaces
- Seaming of vinyl banners
- Universal all-purpose bonding applications common to double coated tapes
Aggressive Adhesion
3M™ Double Coated Tape 9741 is coated on both sides with an aggressive, pressure sensitive acrylic adhesive. This bonding agent provides an ultra-high peel acrylic adhesive system that bonds well to most substrates, including low surface energy plastics. It provides superior bonding and conformability to irregular as well as flat surfaces. It will withstand a wide range of temperatures and applications.
What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in web processing, construction, fabrication, arts and hobby industries, among others.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000124337
- Legacy Stock Number: 70006436300
- 3M Catalog Number: 9741
- Sales UOM: Roll
- Sales UPC: 00051115316654 (051115316654)
- Smallest Saleable Unit UPC: 50051115316659 (051115316659)
- Shipper UPC: 50051115316659 (051115316659)
- Typical Lead Time: 20 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Thick and Versatile
3M™ Double Coated Tape 9741 is a 6.5 mil double-sided tape utilizing a 0.5 mil hand-tearable polyester film carrier lined on both sides with acrylic adhesive. It has a high coat weight and adheres well to low surface energy substrates. This product provides excellent UV and heat resistance, and can perform under a wide temperature range (-40°F/-40°C to 200°F/93°C). Once bonded, this tape provides excellent peel and shear strength - making it ideal for rigorous splicing applications and bonding plastics to metals. 3M™ Double Coated Tape 9741 is mounted on a 55# glassine backing to enable ease of deployment. Notably, this product is offered in two colors – clear and red. The red version can be used for visible splicing applications.
Recommended Applications
- High speed splicing applications
- Applications where adhesion to low surface energy substrates is needed
- Bonding decorative trim, plastics and metal profile extrusions
- Attachment to irregular surfaces
- Seaming of vinyl banners
- Universal all-purpose bonding applications common to double coated tapes
Aggressive Adhesion
3M™ Double Coated Tape 9741 is coated on both sides with an aggressive, pressure sensitive acrylic adhesive. This bonding agent provides an ultra-high peel acrylic adhesive system that bonds well to most substrates, including low surface energy plastics. It provides superior bonding and conformability to irregular as well as flat surfaces. It will withstand a wide range of temperatures and applications.
What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in web processing, construction, fabrication, arts and hobby industries, among others.
Important Links:
Flyer
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
