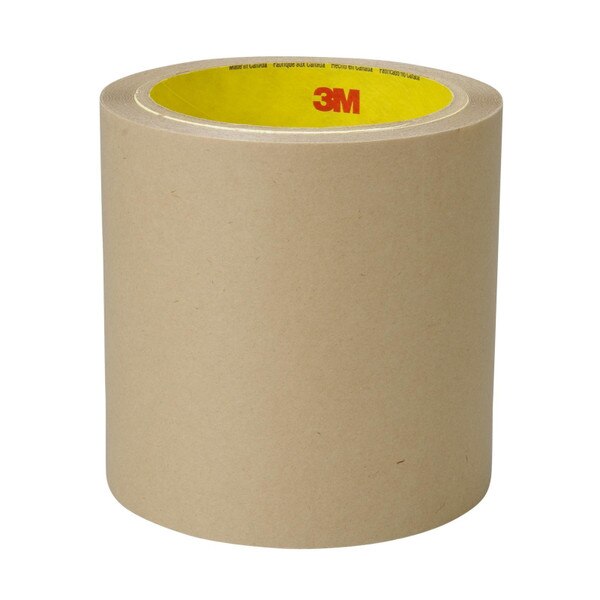

3M Double Coated Tape 9500PC, Clear, 4 in x 36 yd, 5.6 mil, 8 Roll/Case

Details

• 1.0 mil, clear PET carrier film for dimensional stability and ease of die cutting
• 58# unprinted polycoated kraft liner reduces edge burr during hard tool die cutting
• Adheres to powder coated surfaces, most plastics and difficult surfaces
• Clear, 5 mil (0.14 mm) double coated tape with high performance acrylic
• High-holding strength and short-term heat resistance up to 350°F (177°C)

Product Name: 3M™ Double Coated Tape 9500PC, Clear, 4 in x 36 yd, 5.6 mil, 8 Roll/Case

Product Description: 3M™ Double Coated Tape 9500PC is a 5 mil (0.14 mm) 350 high performance acrylic adhesive double coat with a thin polyester carrier film on a 58#, 4.5 mil unprinted, polycoated kraft paper liner. The adhesive excels on low surface energy (LSE) substrates and at high temps.

Our 3M™ Double Coated Tape 9500PC has a 1.0 mil polyester carrier for improved dimensional stability and handling – especially in die cutting and laminating applications. This tape can be used to laminate high performance plastics and difficult substrates, while delivering broad temperature resistance. Toward that end, this tape can be used in temperatures ranging from -40°F (-40°C) to 350°F (177°C). Additionally, users enjoy medium UV resistance, helping to expand the durability and longevity of this product.

Recommended Applications

• Bonding low surface energy (LSE) plastics such as polypropylene and polyethylene
• High temperature applications
• Die cutting
• Laminating

The 350 Advantage
3M™ Adhesive 350 family is a medium-firm acrylic adhesive that provides excellent shear holding power and initial adhesion; as well as high wet grab, temperature and UV resistance. The liner reduces edge burr during hard tool die cutting, improving accuracy and potentially improving throughput. Collectively, these features make this tape suitable for use in various applications across different industries, including: converter solutions, transportation, specialty vehicle, metalworking, automotive, oil and gas, medical, signage, military and government, general industrial, appliance and electronics.

Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010300201
- Legacy Stock Number: 70006255809
- 3M Catalog Number: 9500PC
- Sales UOM: Roll
- Sales UPC: 00021200408007 (021200408007)
- Smallest Saleable Unit UPC: 50021200408002 (021200408002)
- Shipper UPC: 50021200408002 (021200408002)
- Typical Lead Time: 10 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:

Our 3M™ Double Coated Tape 9500PC has a 1.0 mil polyester carrier for improved dimensional stability and handling – especially in die cutting and laminating applications. This tape can be used to laminate high performance plastics and difficult substrates, while delivering broad temperature resistance. Toward that end, this tape can be used in temperatures ranging from -40°F (-40°C) to 350°F (177°C). Additionally, users enjoy medium UV resistance, helping to expand the durability and longevity of this product.

Recommended Applications

• Bonding low surface energy (LSE) plastics such as polypropylene and polyethylene
• High temperature applications
• Die cutting
• Laminating

The 350 Advantage
3M™ Adhesive 350 family is a medium-firm acrylic adhesive that provides excellent shear holding power and initial adhesion; as well as high wet grab, temperature and UV resistance. The liner reduces edge burr during hard tool die cutting, improving accuracy and potentially improving throughput. Collectively, these features make this tape suitable for use in various applications across different industries, including: converter solutions, transportation, specialty vehicle, metalworking, automotive, oil and gas, medical, signage, military and government, general industrial, appliance and electronics.

Important Links:

- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
