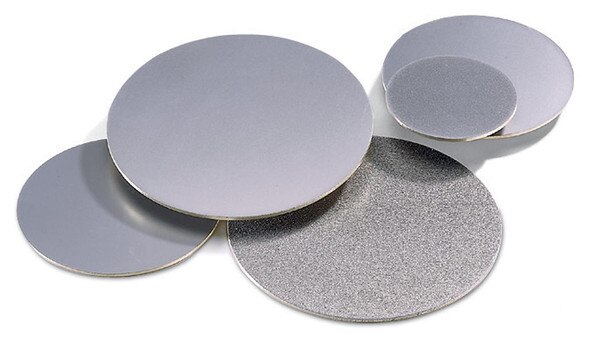

3M Diamond Metal Bond PSA Disc 6MB8, 220 Mesh, 8 in x NH, Die 800L

Details

• Evenly-spaced mineral helps remove workpiece imperfections at a consistent, controlled rate
• Good for lapping, finishing, polishing
• May be used on a variety of substrates, including ceramic
• Micron-graded diamond mineral cuts sharp but delivers fine finishes
• Pressure-sensitive adhesive (PSA) backing for easy attachment to machine or support plate

Product Name: 3M™ Diamond Metal Bond PSA Disc 6MB8, 220 Mesh, 8 in x NH, Die 800L

Product Description: Balancing sharp cutting action with fine finishing, the 3M™ Diamond Metal Bond PSA Disc 6MB8 is made by adhering micron-graded diamond mineral to a brass plate, which is ideal for lapping and similar applications.

Diamond Mineral
We engineer our 3M™ Diamond Metal Bond PSA Disc 6MB8 by electroplating applying micron graded diamond mineral to a flat brass plate. It's a process that helps apply the mineral uniformly to abrasive products, which, in turn, contributes to improved cutting action throughout the abrasive's life. Abrasive micron grades includes 6, 15, 30, 45, 220 and mesh grades 220 and 100.

Recommended Applications
Use 3M™ Diamond Metal Bond PSA Disc 6MB8 for flat lapping, metallurgical testing, sharpening carbide tools, gem faceting, grinding glassy materials that generate erosive swarf, and flat lapping applications that in that require superior surface finishes and for projects that need good precision and control.

PSA Backing
Aside from selecting micron-graded diamond mineral, 3M™ Diamond Metal Bond PSA Disc 6MB8 features a pressure-sensitive adhesive (PSA) backing to help operators effectively secure the disc to their machinery. Altogether, our 3M™ Diamond Metal Bond PSA Disc 6MB8 is great for projects with close tolerances, helping deliver fine finishes and workpiece refinement.

Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010299233
- Legacy Stock Number: 60990140323
- Sales UOM: Each
- Sales UPC: 00051144779604 (051144779604)
- Smallest Saleable Unit UPC: 00051144779604 (051144779604)
- Shipper UPC: 00000000000nan (000000000nan)
- Typical Lead Time: 9 Days
- Shelf Life: 1825 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:

Diamond Mineral
We engineer our 3M™ Diamond Metal Bond PSA Disc 6MB8 by electroplating applying micron graded diamond mineral to a flat brass plate. It's a process that helps apply the mineral uniformly to abrasive products, which, in turn, contributes to improved cutting action throughout the abrasive's life. Abrasive micron grades includes 6, 15, 30, 45, 220 and mesh grades 220 and 100.

Recommended Applications
Use 3M™ Diamond Metal Bond PSA Disc 6MB8 for flat lapping, metallurgical testing, sharpening carbide tools, gem faceting, grinding glassy materials that generate erosive swarf, and flat lapping applications that in that require superior surface finishes and for projects that need good precision and control.

PSA Backing
Aside from selecting micron-graded diamond mineral, 3M™ Diamond Metal Bond PSA Disc 6MB8 features a pressure-sensitive adhesive (PSA) backing to help operators effectively secure the disc to their machinery. Altogether, our 3M™ Diamond Metal Bond PSA Disc 6MB8 is great for projects with close tolerances, helping deliver fine finishes and workpiece refinement.

Important Links:
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
