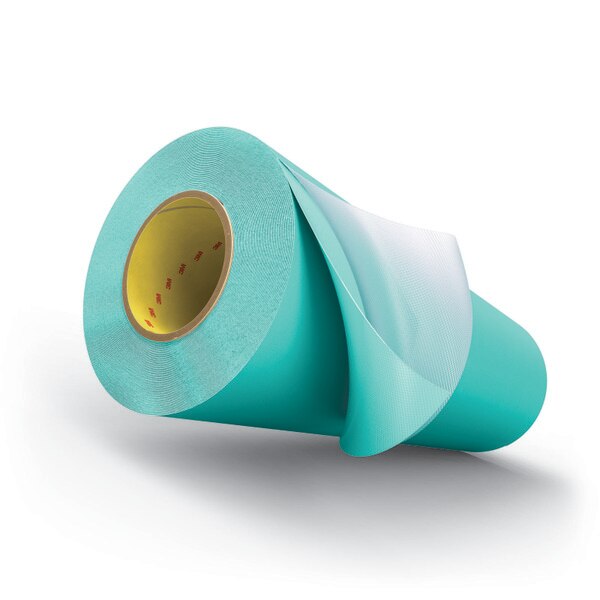

3M Cushion-Mount Plus Plate Mounting Tape E1720, Teal, 24 in x 25 yd, 20 mil, 1 Roll/Case
Details
- 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
- Cushioned flexographic plate mounting sticky back foam tape
- Flexographic printing, flexographic printers
- Grooves in the adhesive are created by a cross-hatch pattern from the release liner
- Has a medium firm density foam that is ideal for printing combinations of solids and process with halftone dots
- Plate easily demounts from the double coated cushioned tape without adhesive residue
- Print plates mounted on E1720 will have no air bubbles under the plate due to the air release feature designed into the tape
- Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
- Tape also removes cleanly from the sleeve or steel print cylinder
- Teal foam color indicates the medium firm density foam
Product Name: 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720, Teal, 24 in x 25 yd, 20 mil, 1 Roll/Case
Product Description: 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This teal foam mounting tape provides high quality medium firm combination print.
Bubble Free Flexographic Plate Mounting
3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720 is a teal foam tape that provides high quality combination print. This is a medium firm tape for combination printing. It has the air release feature that allows for bubble free mounting. This flexographic plate mounting tape has excellent resistance to lifting on press allowing for easy and clean plate removal.
Recommended Applications
- Mounting photopolymer plates to flexographic printing cylinders and sleeves
- Used in combination, process and solid printing processes
- 3M sticky back tapes are designed for wide-web presses to print film or paper for flexible packaging industry
3M flexographic plate mounting tapes are highly engineered to provide very tight caliper tolerance to allow printers to use tape from different manufacturing lots and keep tight print registration. The compressible foam will withstand long and high speed print runs.
This cushion tape is manufactured for 20 mil applications. It is constructed with engineered acrylic adhesives. The adhesive on the linered (plate) side of the tape is designed for mounting of photopolymer plates. The adhesive on the non-linered (sleeve/cylinder) side is designed for mounting to flexographic printing cylinders or sleeves, providing easy application at mounting and clean removal when demounting.
On Easy with Reduced Air Entrapment
3M air release liners have a crosshatched pattern, unlike other mounting tapes that use a pebbled or flat release liner. The embossed crosshatched pattern imprints unique microchannels into the easy mount adhesive that allows entrapped air to escape. Air bubbles disappear from between the tape and plate, and between the tape and sleeve or cylinder for virtually bubble-free mounting. Setup is faster with smoother surfaces for cleaner print quality and higher productivity. The adhesive maintains tight contact with reduced edge lifting.
Keep the Presses Running and your Customers Coming Back
For decades, 3M products have been at work in printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010374601
- Legacy Stock Number: 70006404282
- 3M Catalog Number: E1720
- Sales UOM: Roll
- Sales UPC: 00048011582054 (048011582054)
- Smallest Saleable Unit UPC: 00048011582054 (048011582054)
- Shipper UPC: 00048011582054 (048011582054)
- Typical Lead Time: 18 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Bubble Free Flexographic Plate Mounting
3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720 is a teal foam tape that provides high quality combination print. This is a medium firm tape for combination printing. It has the air release feature that allows for bubble free mounting. This flexographic plate mounting tape has excellent resistance to lifting on press allowing for easy and clean plate removal.
Recommended Applications
- Mounting photopolymer plates to flexographic printing cylinders and sleeves
- Used in combination, process and solid printing processes
- 3M sticky back tapes are designed for wide-web presses to print film or paper for flexible packaging industry
3M flexographic plate mounting tapes are highly engineered to provide very tight caliper tolerance to allow printers to use tape from different manufacturing lots and keep tight print registration. The compressible foam will withstand long and high speed print runs.
This cushion tape is manufactured for 20 mil applications. It is constructed with engineered acrylic adhesives. The adhesive on the linered (plate) side of the tape is designed for mounting of photopolymer plates. The adhesive on the non-linered (sleeve/cylinder) side is designed for mounting to flexographic printing cylinders or sleeves, providing easy application at mounting and clean removal when demounting.
On Easy with Reduced Air Entrapment
3M air release liners have a crosshatched pattern, unlike other mounting tapes that use a pebbled or flat release liner. The embossed crosshatched pattern imprints unique microchannels into the easy mount adhesive that allows entrapped air to escape. Air bubbles disappear from between the tape and plate, and between the tape and sleeve or cylinder for virtually bubble-free mounting. Setup is faster with smoother surfaces for cleaner print quality and higher productivity. The adhesive maintains tight contact with reduced edge lifting.
Keep the Presses Running and your Customers Coming Back
For decades, 3M products have been at work in printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done.
Important Links:
Tech Data Sheet
Flyer
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
