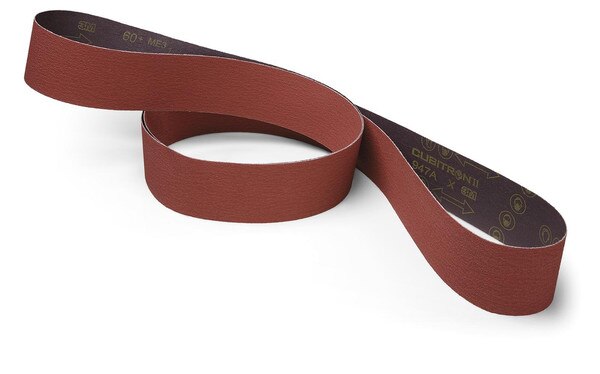

3M Cubitron ll Cloth Belt 947A, 120+ X-weight, 3/4 in x 20-1/2 in, Fabri-lok, Single-flex, 50/Pac, 200 ea/Case
Details
- 3M Precision-Shaped Grain slices through metals like a knife rather than gouging or plowing
- An X-weight poly-cotton backing is optimized for flexibility
- Cool cutting action lessens the risk of heat-related damage to workpiece
- Includes a grinding aid for less grinding friction and cooler cutting
- Lasts up to 4 times longer than conventional ceramic belts
- Removes material faster, with less pressure
Product Name: 3M™ Cubitron™ ll Cloth Belt 947A, 120+ X-weight, 3/4 in x 20-1/2 in, Fabri-lok, Single-flex, 50/Pac, 200 ea/Case
Product Description: The 3M™ Cubitron II Abrasive Belt 947A built with 3M™ Precision-Shaped Grain cuts metal dramatically faster and cooler, and stays sharp longer than conventional ceramic belts. Its X-weight poly-cotton backing is flexible. This belt is optimized for low and medium pressure applications on stainless steel, mild steels, and aluminum.
Fast and Flexible
A closed coat and a grinding aid make our 3M™ Cubitron II Abrasive Belt 947A an outstanding option for low to medium pressure applications on heat sensitive metals. The nature of the abrasive structure diverts heat to the swarf, keeping both belt and workpiece cooler. It is now available in grades 40+ (make to order), 60+, 80+ and now 120+ adding an improved solution for finer finishing applications.
Cutting Edge Performance for Low and Medium Pressure Sanding
A semi flexible Cubitron II belt the 3M™ 947A sports an X-weight poly-cotton backing. Among backing weights, an X-weight cloth is flexible and provides tensile strength as well. A great number of small belt sizes which are nimble and maneuverable so operators can get in, over and around intricate parts. These belts are good options for low-and-medium-pressure offhand operations for use on the following equipment:
- Backstands
- File Belt Sanders
- Inline Sanders
- Stroke Sanders
How 3M Precision-Shaped Grain Works
3M Precision-Shaped Grain is designed to continuously fracture to form sharp points and edges that easily “slice” through metal. It cuts faster, lasts longer and stays cooler. Conventional ceramic abrasive grain tends to “plow” through the metal, causing heat to build up in the workpiece and the abrasive – resulting in a slower cut, shorter belt life and undesirable effects, such as burnishing.
3M Science. The Beginning of Cubitron II.
In 2009, 3M scientists had long believed abrasives would work better if each grain of the ceramic abrasive material was exactly the same size and shape. It would act more like a knife shaving off material and less like a plow bouncing along the surface, creating heat damage. The breakthrough came when they realized they could use microreplication technology 3M was already using to create reflective material for signs, and other purposes. Within a short time, they had created 3M's Precision Shaped Grain — identical triangular-shaped abrasive grains electrostatically oriented and distributed uniformly on an abrasive backing. The end result is faster, cooler cutting action, improved productivity, less operator fatigue and longer belt life.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010307700
- Legacy Stock Number: 60410012920
- Sales UOM: Each
- Sales UPC: 00051125947145 (051125947145)
- Smallest Saleable Unit UPC: 30051125947146 (051125947146)
- Shipper UPC: 50051125947140 (051125947140)
- Typical Lead Time: 2 Days
- Shelf Life: 3650 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Fast and Flexible
A closed coat and a grinding aid make our 3M™ Cubitron II Abrasive Belt 947A an outstanding option for low to medium pressure applications on heat sensitive metals. The nature of the abrasive structure diverts heat to the swarf, keeping both belt and workpiece cooler. It is now available in grades 40+ (make to order), 60+, 80+ and now 120+ adding an improved solution for finer finishing applications.
Cutting Edge Performance for Low and Medium Pressure Sanding
A semi flexible Cubitron II belt the 3M™ 947A sports an X-weight poly-cotton backing. Among backing weights, an X-weight cloth is flexible and provides tensile strength as well. A great number of small belt sizes which are nimble and maneuverable so operators can get in, over and around intricate parts. These belts are good options for low-and-medium-pressure offhand operations for use on the following equipment:
- Backstands
- File Belt Sanders
- Inline Sanders
- Stroke Sanders
How 3M Precision-Shaped Grain Works
3M Precision-Shaped Grain is designed to continuously fracture to form sharp points and edges that easily “slice” through metal. It cuts faster, lasts longer and stays cooler. Conventional ceramic abrasive grain tends to “plow” through the metal, causing heat to build up in the workpiece and the abrasive – resulting in a slower cut, shorter belt life and undesirable effects, such as burnishing.
3M Science. The Beginning of Cubitron II.
In 2009, 3M scientists had long believed abrasives would work better if each grain of the ceramic abrasive material was exactly the same size and shape. It would act more like a knife shaving off material and less like a plow bouncing along the surface, creating heat damage. The breakthrough came when they realized they could use microreplication technology 3M was already using to create reflective material for signs, and other purposes. Within a short time, they had created 3M's Precision Shaped Grain — identical triangular-shaped abrasive grains electrostatically oriented and distributed uniformly on an abrasive backing. The end result is faster, cooler cutting action, improved productivity, less operator fatigue and longer belt life.
Important Links:
Flyer
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
