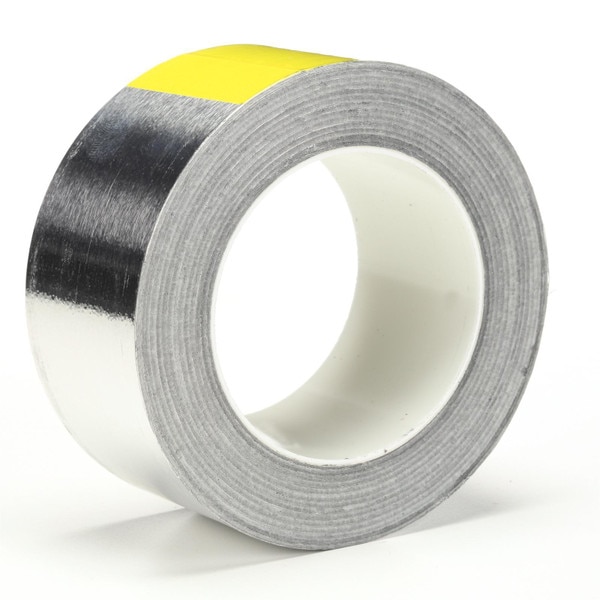

3M Conductive Aluminum Foil Tape 3302, Silver, 2 in x 36 yd, 3.5 mil, 24 Rolls/Case
Details
- Acrylic adhesive features good "wetting out" capabilities to all surfaces
- Aluminum foil backing works well for EMI/RFI shielding applications
- Bonds extremely well to low surface energy materials and difficult textured surfaces
- High strength aluminum foil backing is durable and malleable to conform to uneven or irregular surfaces
- Performs continuously over an extremely wide temperature range from 0°F/-18°C to 225°F/107°C
Product Name: 3M™ Conductive Aluminum Foil Tape 3302, Silver, 2 in x 36 yd, 3.5 mil, 24 Rolls/Case
Product Description: 3M™ Conductive Aluminum Foil Tape 3302 is a high-strength, dead soft aluminum foil coated tape that's perfect for printed circuit manufacture and repair, shielding applications in the electronics industry and low-level EMI and RFI shielding applications. This dead soft aluminum foil-backed tape features a conductive acrylic adhesive that bonds well to many materials, including those with difficult textures. It is malleable and can conform to irregular surfaces, and it has good "wetting out" capabilities to all textured surfaces. This durable, UL510 listed tape is resistant to flame, moisture, weather, UV degradation, and chemicals. It is ideal for heating and cooling efficiency and helps reflect heat and light. A wide temperature range (from -40 °F/-40 °C to 250 °F/121 °C) allows this tape to be used in a variety of low and high-temperature applications. For all weather electronic shielding needs, use 3M™ Conductive Aluminum Foil Tape 3302.
High Strength Aluminum Foil Tape
3M™ Conductive Aluminum Foil Tape 3302 is a 2 mil aluminum foil backed tape consisting of a high strength, dead soft aluminum foil backing and a conductive acrylic adhesive. This tape resists flame, moisture, weather, UV degradation and many chemicals. It is a thermally conductive tape ideal for heating and cooling efficiency. It helps reflect heat and light and is malleable to conform to irregular or uneven surfaces. This tape is a durable option for conductive applications and EMI and RFI shielding applications in the electronics industry. A wide temperature range (from 0°F/-18°C to 225°F/107°C) allows this tape to be used in a variety of low and high temperature applications.
Suggested Applications
- Printed circuit manufacture and repair
- Shielding applications in the electronics industry
- Low level EMI and RFI shielding applications
Conductive Adhesive that "Wets Out"
3M™ Conductive Aluminum Foil Tape 3302 is coated with an aggressive conductive acrylic adhesive system that bonds well to a diverse selection of materials, including low surface energy materials and those with difficult textures. It has good "wetting out" capabilities to all surfaces. This tape is mounted on a glassing paper release liner to help preserve the adhesive prior to adhesion and assist in the application of the tape. Once bonded, this tape provides a thermally conductive bond that is ideal for heating and cooling efficiency.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7100067294
- Legacy Stock Number: 70000229370
- 3M Catalog Number: 3302
- Sales UOM: Roll
- Sales UPC: 00051125658225 (051125658225)
- Smallest Saleable Unit UPC: 50051125658220 (051125658220)
- Shipper UPC: 50051125658220 (051125658220)
- Typical Lead Time: 2 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
High Strength Aluminum Foil Tape
3M™ Conductive Aluminum Foil Tape 3302 is a 2 mil aluminum foil backed tape consisting of a high strength, dead soft aluminum foil backing and a conductive acrylic adhesive. This tape resists flame, moisture, weather, UV degradation and many chemicals. It is a thermally conductive tape ideal for heating and cooling efficiency. It helps reflect heat and light and is malleable to conform to irregular or uneven surfaces. This tape is a durable option for conductive applications and EMI and RFI shielding applications in the electronics industry. A wide temperature range (from 0°F/-18°C to 225°F/107°C) allows this tape to be used in a variety of low and high temperature applications.
Suggested Applications
- Printed circuit manufacture and repair
- Shielding applications in the electronics industry
- Low level EMI and RFI shielding applications
Conductive Adhesive that "Wets Out"
3M™ Conductive Aluminum Foil Tape 3302 is coated with an aggressive conductive acrylic adhesive system that bonds well to a diverse selection of materials, including low surface energy materials and those with difficult textures. It has good "wetting out" capabilities to all surfaces. This tape is mounted on a glassing paper release liner to help preserve the adhesive prior to adhesion and assist in the application of the tape. Once bonded, this tape provides a thermally conductive bond that is ideal for heating and cooling efficiency.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
