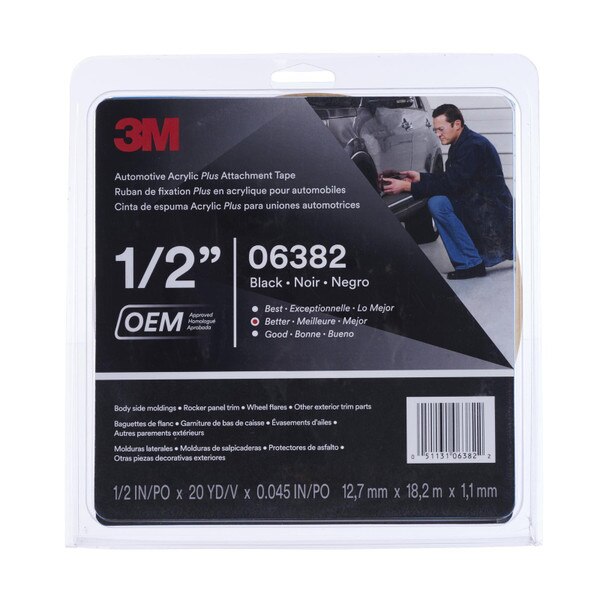

3M Automotive Acrylic Plus Attachment Tape 06382, Black, 1.12 mm, 1/2 in x 20 yd, 12 Roll/Case
Details
- Black foam tape provides good bond-line appearance
- Conformable 1.12 mm acrylic foam core delivers stress relaxation under load
- Features two adhesives – one on each side of the tape for effective bonding
- Liner-side adhesive is excellent for metals and plastic parts
- Non-liner side adhesive is designed for high initial and final bond to automotive paint systems
Product Name: 3M™ Automotive Acrylic Plus Attachment Tape 06382, Black, 1.12 mm, 1/2 in x 20 yd, 12 Roll/Case
Product Description: 3M™ Automotive Acrylic Plus Attachment Tape 06382 features two adhesives, one on each side of a 1.12 mm acrylic foam core. Liner-side adhesive is formulated for bonding to automotive paint systems, and the non-liner-side bonds to metals and plastics used in automotive components. Both deliver excellent initial tack and adhesive build for a permanent bond. Black tape helps create sharp bond lines.
Two Adhesives for Bonding to Automotive Parts and Paint Systems
Developed specifically for attaching exterior trim and other parts to automotive substrates, our 3M™ Automotive Acrylic Plus Attachment Tape 06382 features a 1.12 mm acrylic foam core with two different adhesives – one for each side of the application. The liner-side acrylate adhesive provides very high initial and final adhesion to a range of traditional and scratch-optimized auto paint systems. The adhesive on the non-liner side is designed for plastic and metal surfaces including polypropylene, PP/EPDM and thermoplastic polyolefin (TPO) commonly used on automotive trim and components. Both adhesives are formulated for high adhesive build. The viscoelastic foam core conforms well even to complex geometries. It is engineered for stress relaxation when exposed to high stress loads, and maintains bond-line aesthetics under normal stress loads. The black color of this OEM approved tape helps create sharp bond-lines. A red 3M branded liner provides easy one-piece release for efficient application.
Confidence in Your Purchase
The 3M branded liner features a subtle 3M logo-marking to provide evidence to the customer that they are receiving the 3M quality they expect from their purchase. The liner makes our tapes easy to identify and difficult to imitate. This proprietary branding technology is designed to help identification of 3M™ Acrylic Foam Tapes.
3M recommends the use of 3M™ Automotive Adhesion Promoter 06396 for tape-to-part adhesion with Automotive Acrylic Plus Attachment Tape 06382 on all plastic parts such as RIM, TPO, PPO, PP and PC.
Recommended Applications
- Lightweight body side moldings
- Wheel flares
- Door edge moldings
- Interior trim panels
- Antenna housings
- Badges, nameplates and emblems
Better Science for Better Adhesion from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life –developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations - and all of it goes into each of our products developed for automotive OEM, like 3M™ Automotive Acrylic Plus Attachment Tape 06382.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000001573
- Legacy Stock Number: 70016040019
- Sales UOM: Roll
- Sales UPC: 00051131063822 (051131063822)
- Smallest Saleable Unit UPC: 00051131063822 (051131063822)
- Shipper UPC: 50051131063827 (051131063827)
- Typical Lead Time: 2 Days
- Shelf Life: 730 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Two Adhesives for Bonding to Automotive Parts and Paint Systems
Developed specifically for attaching exterior trim and other parts to automotive substrates, our 3M™ Automotive Acrylic Plus Attachment Tape 06382 features a 1.12 mm acrylic foam core with two different adhesives – one for each side of the application. The liner-side acrylate adhesive provides very high initial and final adhesion to a range of traditional and scratch-optimized auto paint systems. The adhesive on the non-liner side is designed for plastic and metal surfaces including polypropylene, PP/EPDM and thermoplastic polyolefin (TPO) commonly used on automotive trim and components. Both adhesives are formulated for high adhesive build. The viscoelastic foam core conforms well even to complex geometries. It is engineered for stress relaxation when exposed to high stress loads, and maintains bond-line aesthetics under normal stress loads. The black color of this OEM approved tape helps create sharp bond-lines. A red 3M branded liner provides easy one-piece release for efficient application.
Confidence in Your Purchase
The 3M branded liner features a subtle 3M logo-marking to provide evidence to the customer that they are receiving the 3M quality they expect from their purchase. The liner makes our tapes easy to identify and difficult to imitate. This proprietary branding technology is designed to help identification of 3M™ Acrylic Foam Tapes.
3M recommends the use of 3M™ Automotive Adhesion Promoter 06396 for tape-to-part adhesion with Automotive Acrylic Plus Attachment Tape 06382 on all plastic parts such as RIM, TPO, PPO, PP and PC.
Recommended Applications
- Lightweight body side moldings
- Wheel flares
- Door edge moldings
- Interior trim panels
- Antenna housings
- Badges, nameplates and emblems
Better Science for Better Adhesion from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life –developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations - and all of it goes into each of our products developed for automotive OEM, like 3M™ Automotive Acrylic Plus Attachment Tape 06382.
