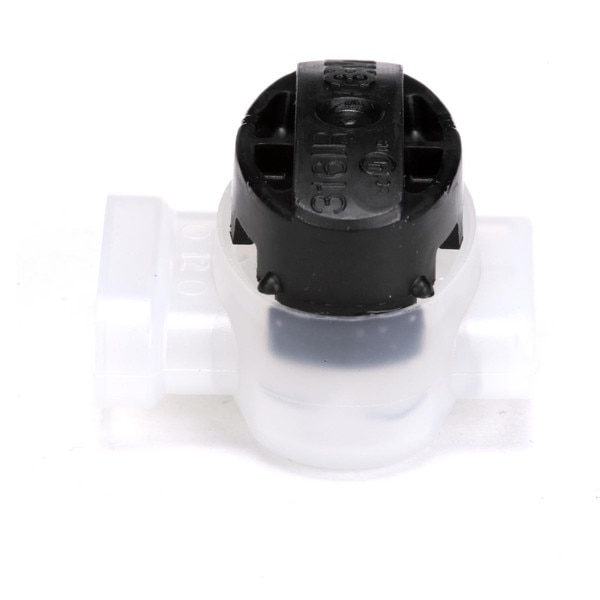

3M Scotchlok Electrical IDC 316IR, Pigtail, Irrigation Applications, Black/White, 22-16 AWG, 30 per carton, 300 /Case
Details
Details
Product Name: 3M™ Scotchlok™ Electrical IDC 316IR, Pigtail, Irrigation Applications, Black/White, 22-16 AWG, 30 per carton, 300 /Case
Product Description: 3M™ Scotchlok™ Insulation Displacement Connector 316IR is ideal for use with low energy underground circuit wires, sprinkler systems, landscape lighting or other applications requiring moisture resistance. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping and moisture resistant.
3M™ Scotchlok™ Insulation Displacement Connector 316IR is 600V rated for building wire. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed and RoHS 2011/65/EU Compliant.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000058271
- Legacy Stock Number: 80610734537
- 3M Catalog Number: 316-IR BAG
- Sales UOM: Each
- Sales UPC: 00054007504191 (054007504191)
- Smallest Saleable Unit UPC: 30054007504192 (054007504192)
- Shipper UPC: 50054007504196 (054007504196)
- Typical Lead Time: 2 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: 3M™ Scotchlok™ Insulation Displacement Connector 316IR is 600V rated for building wire. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed and RoHS 2011/65/EU Compliant.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
- Accommodates 16 to 14 AWG solid/stranded, 12 AWG stranded (outer ports) and 18 AWG solid/stranded, 20 AWG stranded (inner port)
- C UL Listed and RoHS 2011/65/EU Compliant
- Helps provide a moisture-resistant seal
- Suitable for applications requiring moisture and UV protection
