T120R2xDHVSDL12x17

Part Number Data

Article Number: 156-04007
Part Number: 156-04007
Global Product Name: T120R2xDHVSDL12x17
UPC: 89306471998

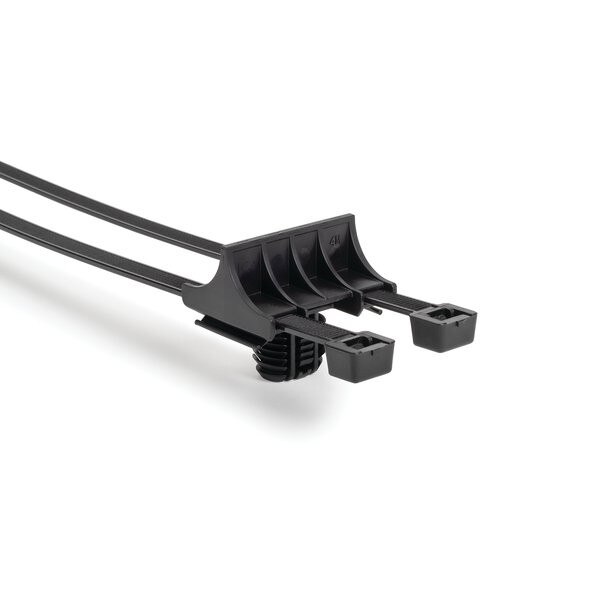

T120R2xDHVSDL12x17 Fir Tree Mount Cable Tie

Product Overview

HellermannTyton’s Fir Tree Mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. They are optimized for up to 3-to-1 extraction versus insertion force to make assembly fast and easy. These mounts are sold unassembled.

Key Features and Benefits:

• Robust fir tree design provides low insertion effort yet delivers exceptional retention strength.
• Anti-rotational oval fir tree keeps bundle in intended direction.
• Heavy duty T120 tie provides 120 lb (534 N) tensile strength to secure bundles up to 4" (104 mm).
• Friction tab inside fir tree allows the tie to sit in mount without falling out prior to installation.

Product Details:

• Part Number: 156-04007
• Global Product Name: T120R2xDHVSDL12x17
• UPC: 89306471998
• Country of Origin: MX
• Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
• Color: Black (BK)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
