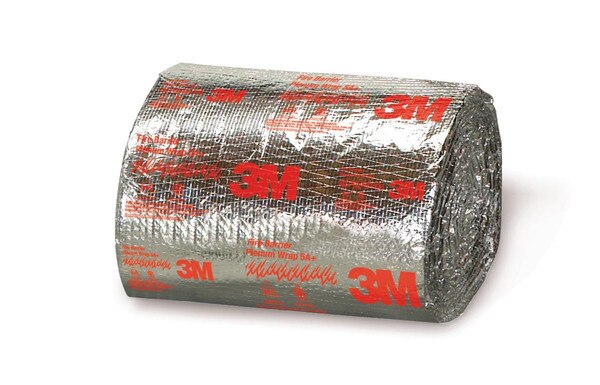

3M Fire Barrier Plenum Wrap 5A+, 1/2 in x 48 in x 25 ft, 2 Each/Case
Details
- Designed as a non-asbestos wrap
- Features a foil encapsulated scrim
- Intended for use on cables, PVC, CPVC, PB, PE, PP, PVDF and pipes in return air plenums
- Strong, lightweight and flexible material for easy installation
- Tested to ASTM E 84, NFPA 262 (UL 910) and UL 1887
Product Name: 3M™ Fire Barrier Plenum Wrap 5A+, 1/2 in x 48 in x 25 ft, 2 Each/Case
Product Description: 3M™ Fire Barrier Plenum Wrap 5A+ is a fire-resistant wrap that consists of an inorganic fiber blanket encapsulated with a scrim-reinforced foil. Plenum wrap is designed as a strong, lightweight and flexible material for easy installation. This product is engineered to create a fire-resistive enclosure that can reduce flame and smoke spread ratings to acceptable levels in return air plenums.
Easy Installation for Tough Fire Protection
Lightweight, yet strong, 3M™ Fire Barrier Plenum Wrap 5A+ is a fire-resistant wrap. We designed this wrap with an inorganic fiber blanket encapsulated with a scrim-reinforced foil, creating a fire-resistive enclosure that can reduce the flame and smoke spread ratings to acceptable levels in return air plenums. This product is tested to UL 910 (NFPA 262), UL 1887, and ASTM E 84 and is made with flexible material for easy installation. We constructed this material to be a non-asbestos wrap with a 6 pcf (96 kg/m3) density.
Recommended Applications
Our 3M™ Fire Barrier Plenum Wrap 5A+ is a protective covering which helps reduce the flame propagation and smoke generation of pipes and cables, including:
- Single and multiple 1-inch diameter (25.4 mm) and larger plastic pipe and cable bundles
- PVC
- CPVC
- PB
- PE
- PP
- PVDF
- ASB pipes in return air plenums
Innovative and Flexible Fire-Resistant Wrap
Wrap and protect plastic pipes in plenum areas more easily with our 3M™ Fire Barrier Plenum Wrap 5A+. Enjoy the lightweight installation and heavyweight fire protection that comes from this innovative solution. Discover the benefits from a fire-resistant wrap designed and tested to reduce external flame propagation and smoke generation.
Technical Specifications:
- Country of Origin: Mexico
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000059415
- Legacy Stock Number: 98040055927
- 3M Catalog Number: 5A+
- Sales UOM: Each
- Sales UPC: 00051115188053 (051115188053)
- Smallest Saleable Unit UPC: 50051115188058 (051115188058)
- Shipper UPC: 50051115188058 (051115188058)
- Typical Lead Time: 2 Days
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information:
Easy Installation for Tough Fire Protection
Lightweight, yet strong, 3M™ Fire Barrier Plenum Wrap 5A+ is a fire-resistant wrap. We designed this wrap with an inorganic fiber blanket encapsulated with a scrim-reinforced foil, creating a fire-resistive enclosure that can reduce the flame and smoke spread ratings to acceptable levels in return air plenums. This product is tested to UL 910 (NFPA 262), UL 1887, and ASTM E 84 and is made with flexible material for easy installation. We constructed this material to be a non-asbestos wrap with a 6 pcf (96 kg/m3) density.
Recommended Applications
Our 3M™ Fire Barrier Plenum Wrap 5A+ is a protective covering which helps reduce the flame propagation and smoke generation of pipes and cables, including:
- Single and multiple 1-inch diameter (25.4 mm) and larger plastic pipe and cable bundles
- PVC
- CPVC
- PB
- PE
- PP
- PVDF
- ASB pipes in return air plenums
Innovative and Flexible Fire-Resistant Wrap
Wrap and protect plastic pipes in plenum areas more easily with our 3M™ Fire Barrier Plenum Wrap 5A+. Enjoy the lightweight installation and heavyweight fire protection that comes from this innovative solution. Discover the benefits from a fire-resistant wrap designed and tested to reduce external flame propagation and smoke generation.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.
