3M Heat Shrink Flexible Polyolefin Tubing EPS200-1 1/2-6"-Black-10-3 Pc Pks, 6 in length sticks, 3 pieces/pack, 10 Packs/Case
Details
Details

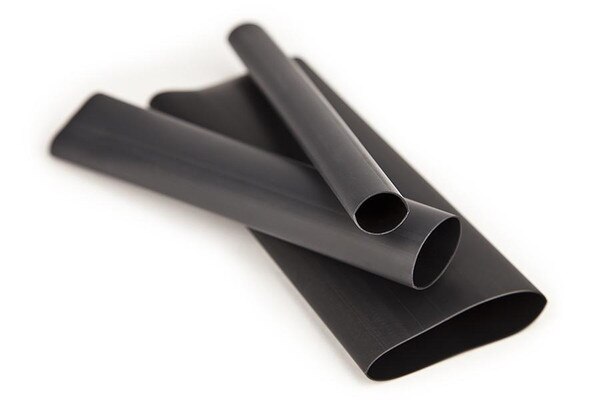

Product Name: 3M™ Heat Shrink Flexible Polyolefin Tubing EPS200-1 1/2-6"-Black-10-3 Pc Pks, 6 in length sticks, 3 pieces/pack, 10 Packs/Case
Product Description: 3M™ EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications. The flexible polyolefin construction with an internal layer of thermoplastic adhesive offers moisture seal protection in automotive and marine applications.
3M™ Heat Shrink Tubing EPS 200 provides a skintight fit and strain relief protection of electronic components, truck wiring splices or wire bundling. This flame retardant tubing has a heat shrinkable outer wall that is irradiation cross linked for abrasion resistance. The tubing also maintains a high flow and has superior adhesion characteristics. When the tubing cools down, it forms a permanent, water resistant barrier. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, SAE AS23053/4, Class 2, CSA Certified and RoHS 2011/65/EU Compliant.
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7010293961
- Legacy Stock Number: 80611603921
- 3M Catalog Number: E21.500BK6"P
- Sales UOM: Pack
- Sales UPC: 00051128601303 (051128601303)
- Smallest Saleable Unit UPC: 00051128601303 (051128601303)
- Shipper UPC: 50051128601308 (051128601308)
- Typical Lead Time: 25 Days
- Shelf Life: 120 Months
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT REGULATED
- International Air Transport Association: NOT REGULATED
Additional Information: 3M™ Heat Shrink Tubing EPS 200 provides a skintight fit and strain relief protection of electronic components, truck wiring splices or wire bundling. This flame retardant tubing has a heat shrinkable outer wall that is irradiation cross linked for abrasion resistance. The tubing also maintains a high flow and has superior adhesion characteristics. When the tubing cools down, it forms a permanent, water resistant barrier. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, SAE AS23053/4, Class 2, CSA Certified and RoHS 2011/65/EU Compliant.
Important Links:
Tech Data Sheet
- EU REACH: This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2023.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective January 2024.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2019.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective July 2021.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2020.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2022.; This product, including any article that the product is composed of, does not contain at greater than 0.1% by weight a Substance of Very High Concern (SVHC) substance identified according to Article 59 of REACH. This declaration reflects the substances on the candidate SVHC list, effective June 2023.
- EU RoHS: This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
- Dual-wall construction provides abrasion resistance and moisture-seal protection
- Flame-retardant tubing is rated for 600V applications
- Made of black flexible polyolefin
- Offers the advantage of integral, adhesive-lined construction
- Protects electronic components, automotive, truck and marine wiring splices or bundling of wires
- Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
