3M Motor Lead Pigtail or V-Stub Splice 5384, 5-8 kV, Feeder: 250-500 kcmil, Motor Lead: 4/0 AWG-500 kcmil , 1/Case
Details
Details
Product Name: 3M™ Motor Lead Pigtail or V-Stub Splice 5384, 5-8 kV, Feeder: 250-500 kcmil, Motor Lead: 4/0 AWG-500 kcmil , 1/Case

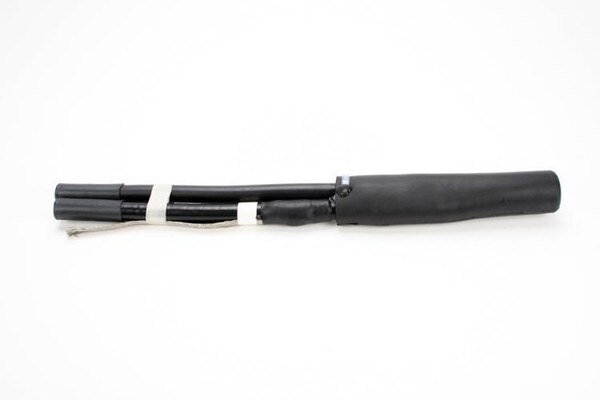

Product Description: 3M™ Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable. These kits can accommodate pigtail (stub) connections, 5/8 kV shielded and non-shielded feeders. The splice’s main component, the slip-on splice cover, is made from EPDM rubber. Mastic is used for the moisture seal on the pigtail kits. The kits utilize a high dielectric constant (K) stress control termination for the feeder cable’s electrical stress control. These kits are designed to be used with copper compression lugs. After being crimped onto the cables, the lugs are bolted together, then insulated and sealed with the 3M Motor Lead Splicing Kits. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlock™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include: • (3) Lug covers • (3) Cold Shrink terminations • (12) Mastic sealing strips • (3) Copper tape strips • (3) Cleaning kits • (6) Tubes of silicone grease • (3) Cold Shrink jacket tubes • (3) Constant force springs • (3) Cable ties • (3) Ground straps • (1) Instruction sheet
Technical Specifications:
- Country of Origin: USA
- ECCN Number: EAR99
Logistics and Handling:
- 3M Stock: 7000133146
- Legacy Stock Number: 80611425424
- 3M Catalog Number: 5384
- Sales UOM: Kit
- Sales UPC: 00051128559543 (051128559543)
- Smallest Saleable Unit UPC: 00051128559543 (051128559543)
- Shipper UPC: 50051128559548 (051128559548)
- Typical Lead Time: 2 Days
- Shelf Life: 60 Months
- United States Department Of Transportation Ground (US DOT, 49 CFR): NOT RESTRICTED, AS PER 49 CFR 171.4, MARINE POLLUTANT EXCEPTION
- International Air Transport Association: NOT RESTRICTED, AS PER SPECIAL PROVISION A197, ENVIRONMENTALLY HAZARDOUS SUBSTANCE EXCEPTION
Important Links:

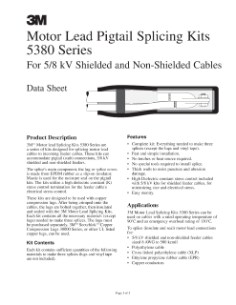

Tech Data Sheet
- Designed for use with 30000 Series copper compression lugs or other UL Listed copper lugs
- Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
- Perfect for use with shielded and non-shielded cables
- Rated for 5/8 kV applications
- The lug or splice cover is made of EPDM rubber to resist punctures and abrasion damage
- Withstands a temperature range of 194 to 266 degrees F (90 to 130 degrees C)
